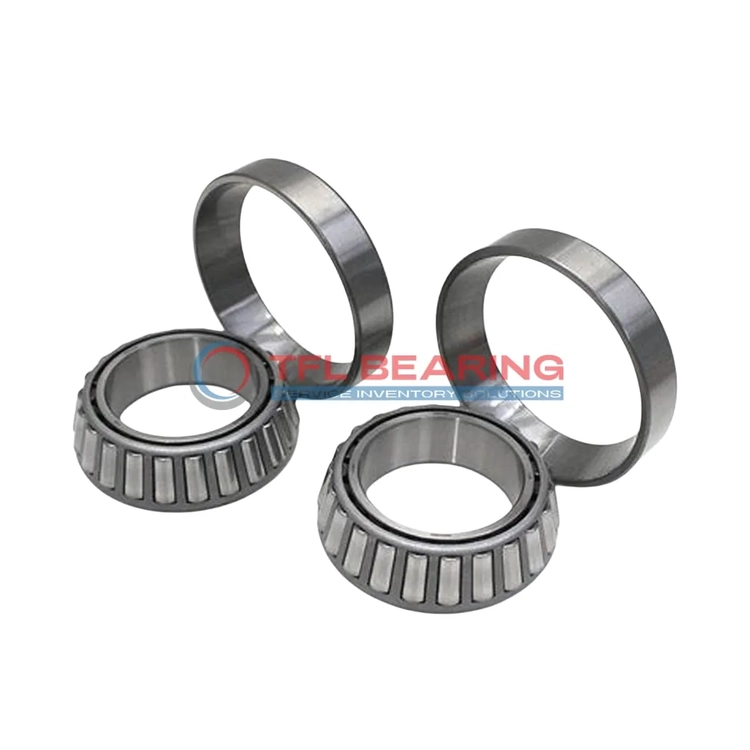

TS (Single Row Tapered Roller Bearings) (Imperial) 6475-6424

TS (Single Row Tapered Roller Bearings) (Imperial) 6475-6424

The 6475-6424 is a single-row tapered roller bearing with a 2.5″ bore and 5.9055″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 92400 lbf radially and 14800 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where both radial and thrust loads are present.

Weighing 10.8 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6475-6424
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5.9055" x 2.1261"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.9055"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.135"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.7717"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.1261"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 5.55"
  • Cup Backface Backing Diameter 5.08"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.09"
  • Effective Center Location -0.59"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 6475
  • Cup Part Number 6424
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 6400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 92400 lbf
  • Static Radial Load 104000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 24000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 14800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 10.8 lb

Features

Performance Features of 6475-6424 Bearing

6475-6424 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 92,400 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Does 6475-6424 Bearing Resist Wear?

6475-6424 Bearing’s tapered roller design distributes loads evenly, minimising wear over time.
The chrome steel construction enhances durability, even under high radial or thrust loads.
Its standard radial clearance options allow for optimal performance in different applications.
Regular lubrication ensures smooth operation and further reduces wear.

Built for Reliability: 6475-6424 Bearing

6475-6424 Bearing handles dynamic thrust loads up to 14,800 lbf, making it suitable for demanding tasks.
The single row construction provides stability while maintaining a compact design.
It meets ABEC-1 precision standards, ensuring consistent performance in industrial applications.
With interchangeable compatibility with Timken bearings, it offers flexible replacement options.

Steel vs Ceramic Bearings: Strengths of 6475-6424 Bearing

6475-6424 Bearing uses chrome steel for both rings and rollers, balancing strength and cost-effectiveness.
This material choice provides excellent load capacity while maintaining good heat resistance.
The steel cage offers reliable performance without the brittleness of ceramic alternatives.
Its 10.8 lb weight reflects a robust construction suitable for industrial machinery.

Application

Industrial Uses of 6475-6424 Bearing
The 6475-6424 Bearing is widely used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 6475-6424 Bearing supports wheel hubs and drivetrain components, providing reliable performance under high radial and thrust loads. The imperial sizing makes it a common choice for North American vehicle models.

For industrial conveyor systems, 6475-6424 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear during high-load scenarios.

What Makes 6475-6424 Bearing a Preferred Choice?
The 6475-6424 Bearing is often selected for agricultural machinery, where its robust design withstands harsh conditions like dust and moisture. Its standard radial clearance ensures smooth operation in variable loads.

In material handling equipment, 6475-6424 Bearing’s high dynamic load capacity makes it suitable for heavy lifting and transport. The tapered rollers distribute stress evenly, enhancing longevity.

Built for Heavy-Duty Use: 6475-6424 Bearing
The 6475-6424 Bearing excels in forestry equipment, handling shock loads and vibrations with ease. Its chrome steel rollers resist deformation, maintaining precision under stress.

For railway applications, 6475-6424 Bearing’s effective center location improves alignment in bogies and axles. The ABEC-1 rating balances performance and cost for standard precision needs.

Automotive vs Aerospace: Applications of 6475-6424 Bearing
In automotive systems, 6475-6424 Bearing is commonly found in differentials and transmissions, where its combined load capacity is essential. The inch measurements simplify compatibility with legacy designs.

For aerospace ground support equipment, 6475-6424 Bearing’s temperature range suits outdoor operations. Its static radial load rating ensures stability during prolonged stationary periods.
