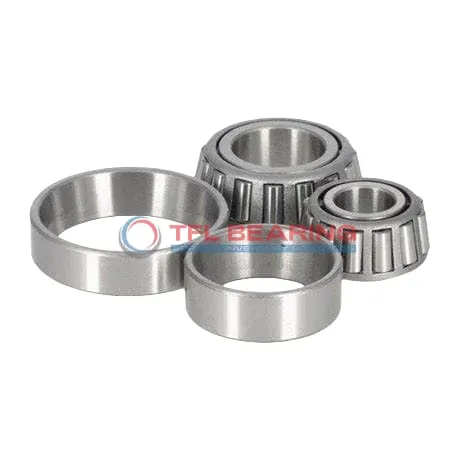

TS (Single Row Tapered Roller Bearings) (Imperial) 6379-6320V

TS (Single Row Tapered Roller Bearings) (Imperial) 6379-6320V

The 6379-6320V is a single-row tapered roller bearing with a 2.5625″ bore and 5.3447″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 85600 lbf radially and 12300 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 8.000 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6379-6320V
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5625" x 5.3447" x 2.125"
  • Bore Dia 2.5625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.3447"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.205"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.67"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 5.00"
  • Cup Backface Backing Diameter 4.61"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.76"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 6379
  • Cup Part Number 6320V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 6300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 85600 lbf
  • Static Radial Load 90900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 22200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.000 lb

Features

Performance Features of 6379-6320V Bearing

6379-6320V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 85,600 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides reliable performance in various conditions.

6379-6320V Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design handles both radial and thrust loads effectively.

Application

Industrial Uses of 6379-6320V Bearing
The 6379-6320V Bearing is commonly used in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 6379-6320V Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a convenient choice for North American vehicle models.

For industrial fans and pumps, 6379-6320V Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds stability, making it suitable for high-speed operations.

What Makes 6379-6320V Bearing a Preferred Choice?
The 6379-6320V Bearing stands out in agricultural machinery, where its ability to handle radial and thrust loads keeps equipment running smoothly. Its standard radial clearance offers flexibility for different applications.

In material handling systems, 6379-6320V Bearing’s robust design reduces downtime, ensuring consistent performance. The ABEC-1 rating provides a balance of precision and affordability for general industrial use.

Built for Heavy-Duty Use: 6379-6320V Bearing
The 6379-6320V Bearing excels in forestry equipment, where its tapered rollers manage uneven loads effortlessly. The chrome steel rollers and rings resist wear, even in dusty environments.

For conveyor systems, 6379-6320V Bearing’s single-row construction simplifies installation and maintenance. Its dynamic radial load capacity ensures reliability in continuous operation scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 6379-6320V Bearing
In light-duty applications like small gearboxes, 6379-6320V Bearing offers a cost-effective solution without compromising performance. Its standard lubrication requirements make it easy to maintain.

For heavy-duty uses such as crane systems, 6379-6320V Bearing’s high static radial load capacity provides the necessary support. The inch sizing ensures compatibility with a wide range of industrial equipment.
