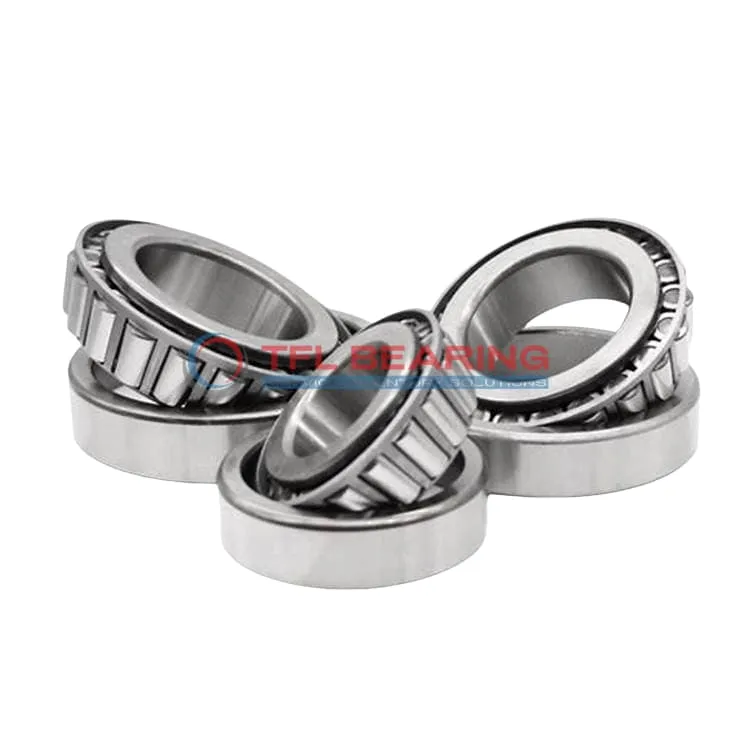

TS (Single Row Tapered Roller Bearings) (Imperial) 6361-6325

TS (Single Row Tapered Roller Bearings) (Imperial) 6361-6325

The 6361-6325 is a single-row tapered roller bearing with a 2.36″ bore and 5.31″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 72,300 lbf radially and 10,400 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes, axles, or heavy machinery where combined loads are common.

Weighing 8.4 lb, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6361-6325
  • Brand TFL
  • Interchangeable Timken
  • Size 2.3622" x 5.315" x 2.125"
  • Bore Dia 2.3622"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.315"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.205"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 2.91"
  • Cone Backface Backing Diameter 3.11"
  • Cup Frontface Backing Diameter 5.00"
  • Cup Backface Backing Diameter 4.61"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.76"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 6361
  • Cup Part Number 6325
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 6300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 72300 lbf
  • Static Radial Load 90900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 18700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10400 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.4 lb

Features

How Does 6361-6325 Bearing Handle Combined Loads?

6361-6325 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 72,300 lbf, ensuring reliable performance in demanding applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

Why Choose 6361-6325 Bearing for Precision Tasks?

6361-6325 Bearing features a single-row tapered roller design, providing precise load distribution.
The chrome steel construction ensures durability and consistent performance under combined loads.
Its standard radial clearance allows for smooth operation in various applications.
The bearing’s ABEC-1 rating confirms its precision engineering for reliable use.

Engineered for Reliability: 6361-6325 Bearing

6361-6325 Bearing’s chrome steel components enhance its resistance to wear and fatigue.
The tapered roller design efficiently handles both radial and thrust loads.
With a static radial load capacity of 90,900 lbf, it ensures long-term reliability.
Its standard lubrication requirement simplifies maintenance while ensuring optimal performance.

Application

Industrial Uses of 6361-6325 Bearing
You’ll often spot 6361-6325 Bearing in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads effortlessly.
The imperial sizing makes it a straightforward replacement for Timken bearings in North American industrial applications.

Why Is 6361-6325 Bearing Essential in Machinery?
This bearing’s chrome steel construction gives it reliable performance in tough conditions, from conveyor systems to gearboxes.
Its standard radial clearance options allow for flexibility in different operating environments.

Built for Heavy-Duty Use: 6361-6325 Bearing
In agricultural machinery, 6361-6325 Bearing withstands the dust and vibrations common in tractors and harvesters.
The steel cage provides durability while maintaining smooth rotation under heavy radial and thrust loads.

Automotive vs Industrial: Applications of 6361-6325 Bearing
For truck wheel hubs, 6361-6325 Bearing offers stable performance mile after mile.
In industrial fans, its ABEC-1 rating ensures reliable operation without unnecessary precision cost premiums.

Key Fields for 6361-6325 Bearing
Power transmission systems benefit from 6361-6325 Bearing’s ability to handle both radial and axial forces.
The open design simplifies relubrication in applications like pulp and paper processing equipment.
