TS (Single Row Tapered Roller Bearings) (Imperial) 624-614X

TS (Single Row Tapered Roller Bearings) (Imperial) 624-614X

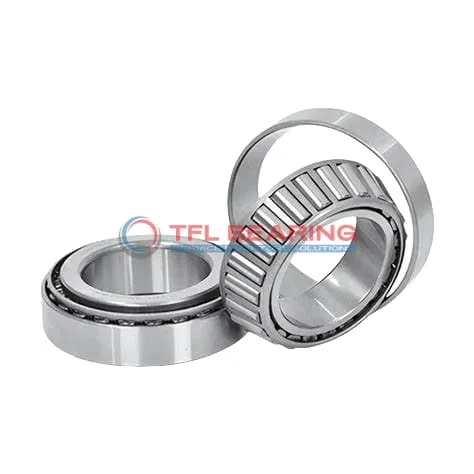

The 624-614X is a single-row tapered roller bearing with a 2.125″ bore and 4.5276″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 46600 lbf radially and 6510 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4.3 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 624-614X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.125" x 4.5276" x 1.6151"
  • Bore Dia 2.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5276"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.24"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.6151"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.52"
  • Cup Frontface Backing Diameter 4.29"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 624
  • Cup Part Number 614X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 615
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46600 lbf
  • Static Radial Load 54800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6510 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.3 lb

Features

What Makes 624-614X Bearing Suitable for Heavy-Duty Applications?

624-614X Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 46,600 lbf, making it ideal for demanding industrial environments.

The tapered roller design ensures even load distribution, enhancing durability and reducing wear.
With a standard radial clearance, it provides reliable performance across various operating conditions.

624-614X Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its steel cage maintains roller alignment, contributing to smooth and stable operation.

The open design simplifies lubrication, ensuring consistent performance over time.
Weighing just 4.3 lb, it combines strength with manageable handling.

Application

Industrial Uses of 624-614X Bearing
The 624-614X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 624-614X Bearing Used?
You’ll often find the 624-614X Bearing in automotive applications like truck wheel hubs, where its high radial load capacity supports smooth operation. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 624-614X Bearing
In industrial settings, the 624-614X Bearing excels in conveyor systems and gearboxes, thanks to its robust steel cage and tapered rollers. Its open design simplifies maintenance, even in high-load scenarios.

Automotive vs Aerospace: Applications of 624-614X Bearing
While the 624-614X Bearing is popular in automotive drivetrains, it’s also suited for aerospace ground support equipment. Its ABEC-1 rating balances precision and cost for diverse needs.

Perfect Fit for Automation: 624-614X Bearing
The 624-614X Bearing works well in automated assembly lines, where its consistent performance under combined loads keeps production running smoothly. The standard radial clearance offers flexibility for various setups.
