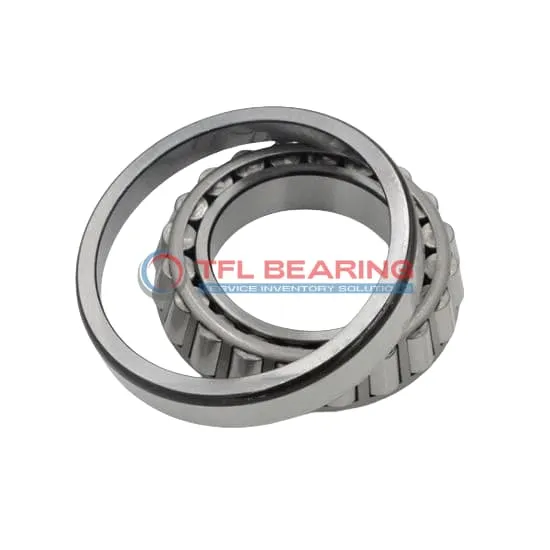

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592

TS (Single Row Tapered Roller Bearings) (Imperial) 598X-592

The 598X-592 is a single-row tapered roller bearing with a 3.625″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48600 lbf radially and 9530 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 5.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598X-592
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 6" x 1.5625"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.76"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.31"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598X
  • Cup Part Number 592
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.9 lb

Features

Performance Features of 598X-592 Bearing

598X-592 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, ensuring smooth operation and reduced wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 598X-592 Bearing Engineered for Reliability?

598X-592 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The precise tolerances on bore and outer diameters ensure a perfect fit during installation.
Its chrome steel construction provides durability, even under continuous heavy loads.
The standard radial clearance options allow for flexibility in different applications.

Built for Durability: 598X-592 Bearing

598X-592 Bearing features a single row construction, simplifying installation and maintenance.
The open seal type design allows for easy lubrication access when required.
With a static radial load capacity of 71,600 lbf, it withstands demanding operational conditions.
The steel cage enhances longevity by keeping rollers properly spaced during rotation.

Steel vs Ceramic Bearings: Strengths of 598X-592 Bearing

598X-592 Bearing uses chrome steel for both rings and rollers, balancing strength and cost-effectiveness.
Its dynamic thrust rating of 9,530 lbf (Ca90) ensures reliable performance in thrust applications.
The ABEC-1 rating provides sufficient precision for most industrial uses.
Weighing 5.9 lb, it maintains a robust construction without unnecessary bulk.

Application

Industrial Uses of 598X-592 Bearing
The 598X-592 Bearing is commonly used in heavy machinery like construction equipment and mining drills, where its tapered roller design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in tough working conditions.

In automotive applications, 598X-592 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high stress. The imperial sizing makes it a convenient choice for North American vehicle manufacturers.

For industrial gearboxes, 598X-592 Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds stability, making it suitable for high-load scenarios.

Where Is 598X-592 Bearing Used?
You’ll often find 598X-592 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands dusty and demanding environments. The standard radial clearance ensures smooth operation even with varying loads.

In conveyor systems, 598X-592 Bearing supports heavy rollers, reducing friction and wear over time. Its compatibility with Timken models makes it a versatile option for maintenance and replacements.

Built for Heavy-Duty Use: 598X-592 Bearing
The 598X-592 Bearing excels in forestry equipment like log splitters, where its tapered rollers manage uneven loads effortlessly. The ABEC-1 rating balances precision and cost-effectiveness for industrial applications.

In power transmission systems, 598X-592 Bearing’s dynamic radial load capacity ensures reliable performance in motors and pumps. The inch measurements simplify integration into existing machinery setups.

Automotive vs Aerospace: Applications of 598X-592 Bearing
In automotive settings, 598X-592 Bearing is ideal for axle systems, offering durability and ease of maintenance. Its chrome steel rollers handle the constant stress of road vehicles.

For aerospace ground equipment, 598X-592 Bearing supports heavy loads in aircraft tugs and loading platforms. The temperature range of -30° to 110°C ensures performance in various climates.
