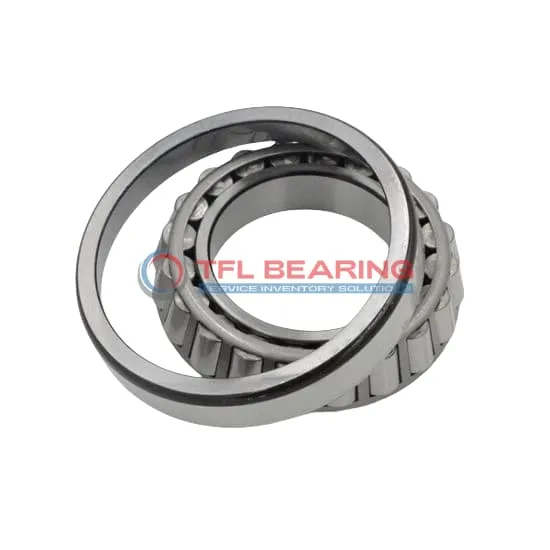

TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592A

TS (Single Row Tapered Roller Bearings) (Imperial) 598W-592A

The 598W-592A is a single-row tapered roller bearing with a 3.625″ bore and 6″ outer diameter, built from sturdy chrome steel for long-lasting performance. It handles combined loads up to 48,600 lbf radially and 9,530 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 5.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598W-592A
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 6" x 1.5626"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.31"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598W
  • Cup Part Number 592A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.7 lb

Features

Performance Features of 598W-592A Bearing

598W-592A Bearing is constructed with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures efficient load distribution, reducing stress on individual components.
With a standard radial clearance, it provides reliable operation in various industrial settings.

598W-592A Bearing operates within a temperature range of -30° to 110°C, ensuring versatility in different environments.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

This bearing is compatible with Timken designs, offering easy interchangeability.
Its ABEC-1 rating ensures consistent performance for precision applications.

Application

Industrial Uses of 598W-592A Bearing
598W-592A Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 598W-592A Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 598W-592A Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability, reducing wear during continuous operation.

Where Is 598W-592A Bearing Used?
You’ll often find 598W-592A Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands uneven loads. The standard radial clearance ensures smooth operation in varying conditions.

In power transmission systems, 598W-592A Bearing supports shafts and gears, thanks to its high dynamic load capacity. The ABEC-1 rating makes it suitable for general precision requirements.

Built for Heavy-Duty Use: 598W-592A Bearing
598W-592A Bearing excels in railway applications, particularly in axle boxes where combined loads are common. Its temperature range of -30° to 110°C ensures reliability in diverse climates.

For pulp and paper processing equipment, 598W-592A Bearing’s steel cage and chrome steel rollers resist corrosion from moisture. The easy lubrication feature minimises downtime in continuous production lines.

Automotive vs Aerospace: Applications of 598W-592A Bearing
In automotive settings, 598W-592A Bearing is ideal for truck wheel ends, handling both radial and thrust loads efficiently. The imperial measurements simplify replacements in older vehicle models.

For aerospace ground support equipment, 598W-592A Bearing’s durability and standard clearance make it a practical choice. However, its ABEC-1 rating limits its use in high-precision flight components.
