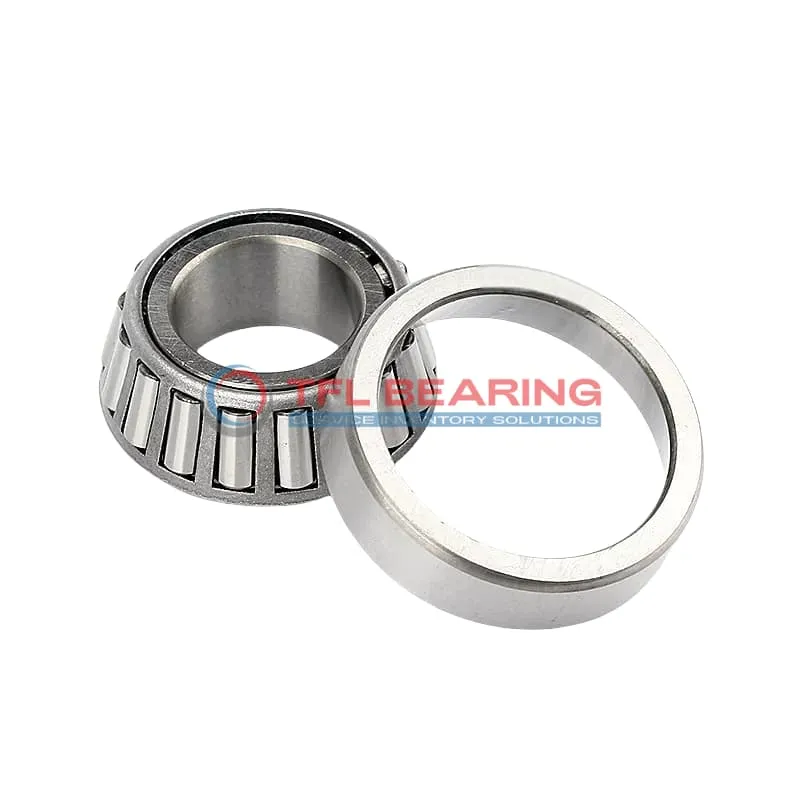

TS (Single Row Tapered Roller Bearings) (Imperial) 598-592

TS (Single Row Tapered Roller Bearings) (Imperial) 598-592

The 598-592 is a single-row tapered roller bearing with a 3.625″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48600 lbf radially and 9530 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive applications where robust performance is needed.

Weighing 5.9 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 598-592
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 6" x 1.5625"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.31"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 598
  • Cup Part Number 592
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.9 lb

Features

Engineered for Precision: 598-592 Bearing

598-592 Bearing features a single row tapered roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, supporting dynamic radial loads up to 48,600 lbf.

The precision-engineered cage maintains roller alignment, reducing friction and wear.
With a standard radial clearance, it offers reliable performance in various applications.

598-592 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over extended periods.

Application

Industrial Uses of 598-592 Bearing
The 598-592 Bearing is commonly used in heavy machinery, such as construction equipment and mining drills, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in tough working conditions.

Where Is 598-592 Bearing Used?
You’ll often find the 598-592 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a fit for many North American industrial applications.

Built for Heavy-Duty Use: 598-592 Bearing
In automotive applications, the 598-592 Bearing is ideal for wheel hubs and differential systems, providing reliable performance under varying loads. Its open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 598-592 Bearing
While the 598-592 Bearing excels in truck axles and heavy vehicles, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both high and low-speed scenarios.

Perfect Fit for Automation: 598-592 Bearing
The 598-592 Bearing works well in automated conveyor systems, where its tapered rollers manage directional changes smoothly. Its steel cage adds stability, making it a dependable choice for continuous operation.
