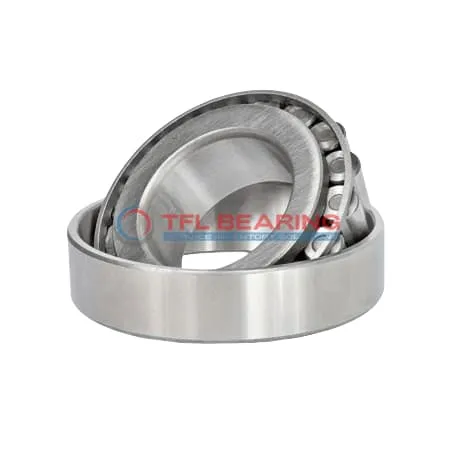

TS (Single Row Tapered Roller Bearings) (Imperial) 595A-592AS

TS (Single Row Tapered Roller Bearings) (Imperial) 595A-592AS

The 595A-592AS is a single-row tapered roller bearing with a 3.125″ bore and 6″ outer diameter, built from sturdy chrome steel for long-lasting performance. It handles combined loads, supporting up to 48,600 lbf dynamically and 71,600 lbf statically.

Its tapered roller design ensures smooth operation under heavy radial and thrust loads, with a dynamic thrust rating of 9,530 lbf. The open seal type allows for easy lubrication, essential for maintaining performance in demanding conditions.

This bearing operates efficiently in temperatures from -30°C to 110°C and is ABEC-1 rated for reliable precision. It’s interchangeable with Timken models, making it a practical choice for replacements.

Ideal for industrial machinery or automotive applications where robust load handling is needed. Weighing 6.4 lb, it’s a solid yet manageable option for heavy-duty use. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 595A-592AS
  • Brand TFL
  • Interchangeable Timken
  • Size 3.125" x 6" x 1.4062"
  • Bore Dia 3.125"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0312"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4062"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 4.4"
  • Cone Backface Backing Diameter 3.86"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.39"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 595A
  • Cup Part Number 592AS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.4 lb

Features

How Does 595A-592AS Bearing Handle Combined Loads?

595A-592AS Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Key Fields for 595A-592AS Bearing
In industrial settings, 595A-592AS Bearing is commonly used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.
For automotive applications, 595A-592AS Bearing fits well in wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many American vehicle models.
In construction equipment, 595A-592AS Bearing supports components like crane booms and excavator arms, where its robust design withstands heavy use. The steel cage adds extra strength for long-term reliability.

How Does 595A-592AS Bearing Improve Performance?
595A-592AS Bearing enhances efficiency in agricultural machinery, such as tractors and harvesters, by reducing friction in rotating parts. Its standard radial clearance allows for smooth operation even under varying loads.
The bearing’s open design simplifies maintenance in mining equipment, where frequent lubrication is needed. Its high dynamic load rating ensures it can handle the tough conditions found in underground operations.

Built for Heavy-Duty Use: 595A-592AS Bearing
595A-592AS Bearing is a solid choice for railway applications, particularly in axle boxes where combined loads are common. The tapered rollers distribute stress evenly, extending service life.
In marine environments, 595A-592AS Bearing performs well in propeller shafts and winches, thanks to its corrosion-resistant materials. The ABEC-1 rating provides sufficient precision for these critical systems.

Automotive vs Aerospace: Applications of 595A-592AS Bearing
In automotive systems, 595A-592AS Bearing is often found in drivetrains, where its strength and durability are key. The inch measurements make it easy to integrate into existing designs.
For aerospace ground equipment, 595A-592AS Bearing supports functions like cargo loaders and tow tractors. Its temperature range ensures reliability in various weather conditions.

Where Is 595A-592AS Bearing Used?
595A-592AS Bearing is ideal for power generation equipment, such as wind turbine gearboxes, where it handles high radial and thrust loads. The steel cage ensures stability during prolonged use.
In material handling systems, 595A-592AS Bearing keeps conveyor belts running smoothly, even under heavy loads. Its standard radial clearance allows for easy installation and maintenance.
