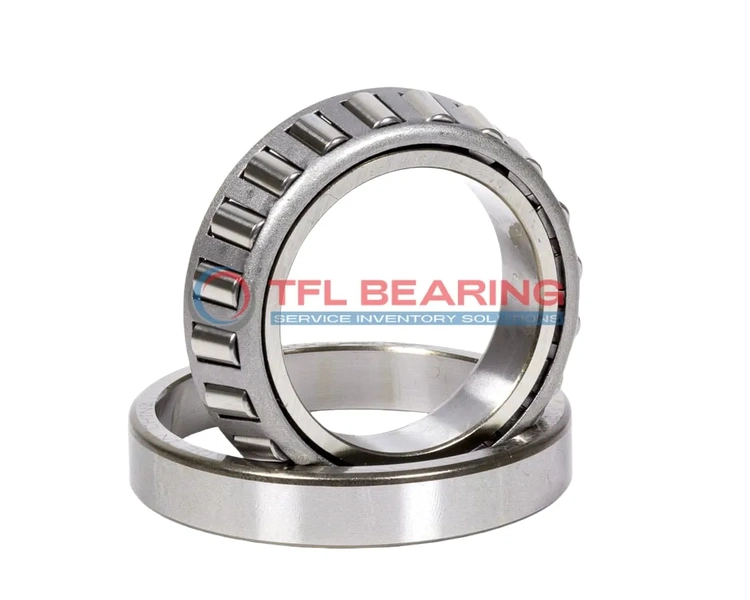

TS (Single Row Tapered Roller Bearings) (Imperial) 595-592AS

The 595-592AS is a single-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 48600 lbf radially and 9530 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery or automotive systems where robust load handling is needed.

Weighing 6.2 lb, it’s built to last and complies with RoHS and REACH standards for safety and environmental care. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 595-592AS
Brand TFL
Interchangeable Timken
Size 3.25" x 6" x 1.4062"
Bore Dia 3.25"
Bore Dia Tolerance +0.001" to 0
Outer Dia 6"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.43"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.0312"
Cup Width Tolerance +0.002" to -0.01
Width 1.4062"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.03"
Cone Frontface Backing Diameter 4.43"
Cone Backface Backing Diameter 3.94"
Cup Frontface Backing Diameter 5.71"
Cup Backface Backing Diameter 5.39"
Cage Cone Frontface Clearance 0.09"
Cage Cone Backface Clearance 0.15"
Effective Center Location -0.1"
System of Measurement Inch
Type Bearing
Cone Part Number 595
Cup Part Number 592AS
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 595
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 48600 lbf
Static Radial Load 71600 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 6.2 lb

Features

How Is 595-592AS Bearing Engineered for Reliability?

595-592AS Bearing features chrome steel rings and rollers, ensuring strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes 595-592AS Bearing Suitable for High-Temperature Applications?

595-592AS Bearing is built with chrome steel components, providing durability in temperatures up to 110°C.
The open design allows for easy lubrication, ensuring smooth operation under high thermal stress.
Its standard radial clearance options offer flexibility for different operational needs.
The bearing’s robust construction ensures consistent performance even in demanding environments.

Designed for Durability: 595-592AS Bearing

595-592AS Bearing’s single-row tapered roller design efficiently handles combined radial and thrust loads.
The chrome steel construction enhances wear resistance, prolonging the bearing’s service life.
With a static radial load capacity of 71,600 lbf, it excels in heavy-load scenarios.
Its ABEC-1 rating ensures reliable precision for various industrial applications.

Application

Industrial Uses of 595-592AS Bearing
595-592AS Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is 595-592AS Bearing Used?
You’ll often find 595-592AS Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a go-to choice for American-made vehicles and machinery.

Built for Heavy-Duty Use: 595-592AS Bearing
595-592AS Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 595-592AS Bearing
In automotive settings, 595-592AS Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precise load handling. Its ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 595-592AS Bearing
595-592AS Bearing works well in conveyor systems and robotic arms, where smooth rotation is key. The standard radial clearance option makes it adaptable to various automation needs.
