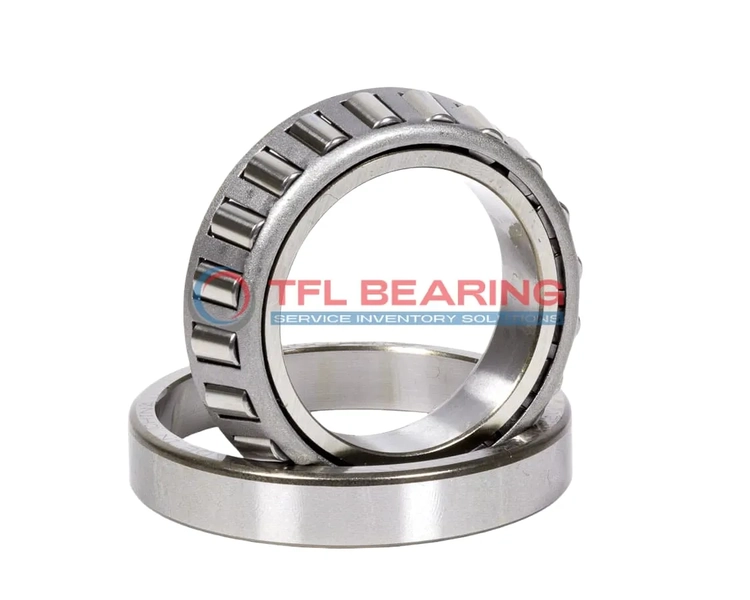

TS (Single Row Tapered Roller Bearings) (Imperial) 595-592

TS (Single Row Tapered Roller Bearings) (Imperial) 595-592

The 595-592 is a single-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48600 lbf radially and 9530 lbf thrust, making it versatile for heavy-duty use.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes or heavy machinery where both radial and thrust loads are present.

Weighing 6.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides effective load distribution, enhancing longevity in demanding settings.

Perfect for maintenance tasks, its straightforward design allows for easy installation and servicing. A dependable choice for engineers and repair teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 595-592
  • Brand TFL
  • Interchangeable Timken
  • Size 3.25" x 6" x 1.5625"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.3125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.43"
  • Cone Backface Backing Diameter 3.94"
  • Cup Frontface Backing Diameter 5.71"
  • Cup Backface Backing Diameter 5.31"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 595
  • Cup Part Number 592
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.700 lb

Features

Why Choose 595-592 Bearing for Combined Loads?

595-592 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

595-592 Bearing’s standard radial clearance and ABEC-1 rating provide consistent precision.
Its single-row tapered design efficiently handles combined loads while maintaining stability.

Application

Industrial Uses of 595-592 Bearing
The 595-592 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

Where Is 595-592 Bearing Used?
You’ll often find the 595-592 Bearing in automotive applications, such as truck wheel hubs, where its high radial and thrust load capacity keeps things running smoothly. The inch sizing makes it a good fit for many US-made vehicles.

Built for Heavy-Duty Use: 595-592 Bearing
This bearing excels in industrial gearboxes, thanks to its robust steel cage and precise tolerances. It’s also a reliable choice for mining equipment, where consistent performance under heavy loads is key.

Automotive vs Aerospace: Applications of 595-592 Bearing
In automotive settings, the 595-592 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where reliability matters. Its ABEC-1 rating ensures dependable performance across both fields.

Key Fields for 595-592 Bearing
The 595-592 Bearing is ideal for conveyor systems in manufacturing plants, where its open design allows for easy lubrication. It’s also handy in marine applications, resisting wear in salty environments.
