TS (Single Row Tapered Roller Bearings) (Imperial) 582-572A

TS (Single Row Tapered Roller Bearings) (Imperial) 582-572A

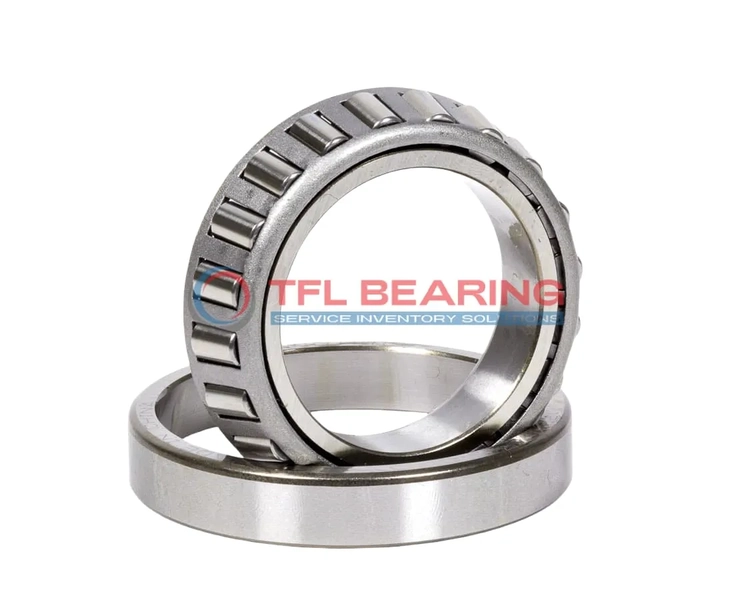

The 582-572A is a single-row tapered roller bearing with a 3.25″ bore and 5.5111″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 46500 lbf radial and 8330 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like vehicle axles or machinery where combined loads are common.

Weighing 4.5 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 582-572A
  • Brand TFL
  • Interchangeable Timken
  • Size 3.25" x 5.5111" x 1.3879"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.5111"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3879"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.270"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.4"
  • Cone Backface Backing Diameter 4.09"
  • Cup Frontface Backing Diameter 5.25"
  • Cup Backface Backing Diameter 4.88"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.21"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 582
  • Cup Part Number 572A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 575
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46500 lbf
  • Static Radial Load 65400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.5 lb

Features

How Is 582-572A Bearing Engineered for Reliability?

582-572A Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, making it suitable for heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes 582-572A Bearing Suitable for High-Temperature Applications?

582-572A Bearing operates efficiently in temperatures ranging from -30° to 110°C, maintaining performance in demanding conditions.
The chrome steel construction resists heat-related wear, ensuring long-term reliability.
Its tapered roller design distributes loads evenly, reducing stress on individual components.
The open seal type allows for easy lubrication, further enhancing its heat resistance.

Designed for Durability: 582-572A Bearing

582-572A Bearing is built with high-quality chrome steel, offering excellent resistance to wear and fatigue.
Its single-row tapered roller design handles both radial and thrust loads effectively.
The standard radial clearance ensures smooth operation, even under varying load conditions.
With a static radial load capacity of 65,400 lbf, it excels in heavy industrial applications.

Application

Industrial Uses of 582-572A Bearing
The 582-572A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in rugged environments.

In automotive applications, 582-572A Bearing fits well in wheel hubs and differential systems, providing reliable performance under high stress. The inch sizing makes it a straightforward replacement for Timken equivalents in many vehicles.

For industrial conveyor systems, 582-572A Bearing’s open design simplifies lubrication and maintenance, reducing downtime. The standard radial clearance offers flexibility for various operational conditions.

Where Is 582-572A Bearing Used?
You’ll often find 582-572A Bearing in mining equipment, where its robust build withstands extreme loads and harsh conditions. The steel cage adds extra strength for long-term use.

In manufacturing plants, 582-572A Bearing supports machinery like presses and gearboxes, ensuring smooth operation. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial needs.

Built for Heavy-Duty Use: 582-572A Bearing
The 582-572A Bearing excels in applications like forestry machinery, where its tapered rollers manage heavy radial and thrust loads. The chrome steel rollers resist wear even under constant use.

For railway systems, 582-572A Bearing’s durability makes it ideal for axle boxes and other high-load components. Its temperature range suits both cold and moderately hot environments.

Automotive vs Aerospace: Applications of 582-572A Bearing
In automotive settings, 582-572A Bearing is a go-to for drivetrain components, offering reliable performance in cars and trucks. Its inch measurements align with many North American vehicle standards.

While not typically used in aerospace, 582-572A Bearing finds its place in ground support equipment, where its strength and ease of maintenance are valued. The open design allows for quick inspections and lubrication.
