TS (Single Row Tapered Roller Bearings) (Imperial) 582-572

TS (Single Row Tapered Roller Bearings) (Imperial) 582-572

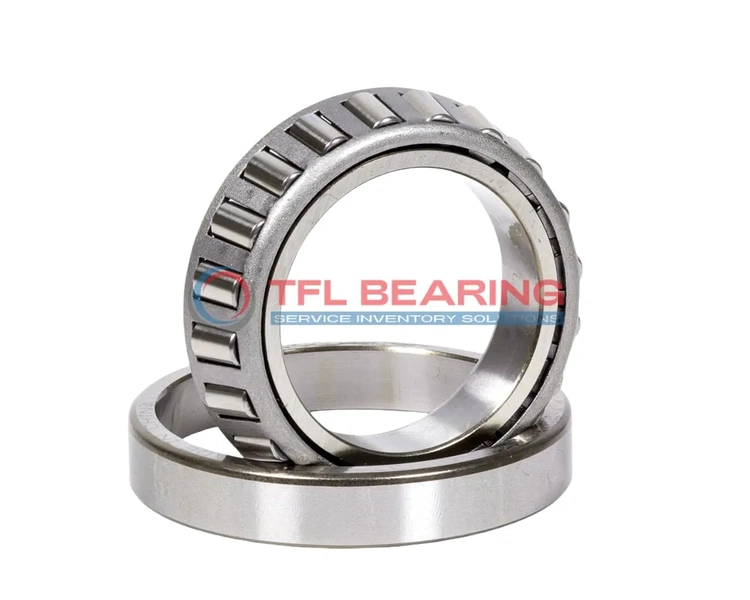

The 582-572 is a single-row tapered roller bearing with a 3.25″ bore and 5.5115″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 46500 lbf radially and 8330 lbf thrust, suitable for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

Interchangeable with Timken bearings, it’s a practical choice for replacements. Ideal for industrial machinery or vehicle applications where combined loads are common.

Weighing 4.6 lb, it’s robust yet manageable. Compliant with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 582-572
  • Brand TFL
  • Interchangeable Timken
  • Size 3.25" x 5.5115" x 1.4375"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.5115"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.270"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.4"
  • Cone Backface Backing Diameter 4.09"
  • Cup Frontface Backing Diameter 5.25"
  • Cup Backface Backing Diameter 4.92"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.21"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 582
  • Cup Part Number 572
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 575
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46500 lbf
  • Static Radial Load 65400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.6 lb

Features

How Is 582-572 Bearing Engineered for Reliability?

582-572 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Structural Advantages of 582-572 Bearing

582-572 Bearing features a single-row tapered roller design, optimised for combined load handling.
The precise cone and cup width tolerances ensure smooth operation and easy installation.
Its chrome steel construction provides durability, even under heavy radial or thrust loads.
The standard radial clearance options allow flexibility for different application needs.

Why Choose 582-572 Bearing for Precision Tasks?

582-572 Bearing’s ABEC-1 rating ensures consistent performance in precision applications.
The effective centre location design enhances stability and reduces vibration during operation.
With a dynamic thrust rating of 8,330 lbf, it handles axial loads efficiently.
Its open seal type simplifies maintenance while keeping lubrication requirements straightforward.

Application

Industrial Uses of 582-572 Bearing
The 582-572 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effortlessly. Its chrome steel construction ensures durability even in tough working conditions.

Where Is 582-572 Bearing Used?
You’ll often spot 582-572 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise inch sizing makes it a reliable choice for older or custom vehicle builds.

Built for Heavy-Duty Use: 582-572 Bearing
In industrial conveyor systems, 582-572 Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 582-572 Bearing
While 582-572 Bearing excels in truck axles and heavy vehicles, its precision also suits aerospace ground support equipment. The ABEC-1 rating ensures consistent performance across different environments.

Perfect Fit for Automation: 582-572 Bearing
In automated production lines, 582-572 Bearing’s tapered rollers provide smooth motion control for robotic arms. Its standard radial clearance offers flexibility for various speed requirements.
