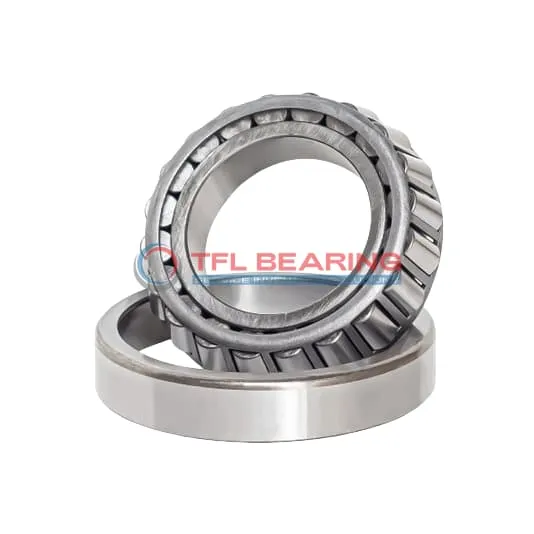

TS (Single Row Tapered Roller Bearings) (Imperial) 576-572

TS (Single Row Tapered Roller Bearings) (Imperial) 576-572

The 576-572 is a single-row tapered roller bearing with a 2.875″ bore and 5.5115″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 46500 lbf radially and 8330 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive applications where robust performance is needed.

Weighing 5.4 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 576-572
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 5.5115" x 1.4375"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.5115"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.02"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 5.25"
  • Cup Backface Backing Diameter 4.92"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.21"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 576
  • Cup Part Number 572
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 575
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46500 lbf
  • Static Radial Load 65400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.4 lb

Features

What Makes 576-572 Bearing Suitable for Heavy-Duty Applications?

576-572 Bearing is built with chrome steel rollers and rings, providing excellent resistance to combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, making it ideal for heavy-duty machinery.
The steel cage ensures proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 576-572 Bearing Engineered for Reliability?

576-572 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, even under high static radial loads of 65,400 lbf.
Its standard radial clearance allows for smooth operation in most industrial applications.
The bearing requires lubrication to maintain performance over extended periods.

Built for Durability: 576-572 Bearing

576-572 Bearing’s tapered roller design ensures efficient load distribution, reducing stress on components.
The steel cage provides stability, keeping rollers in place during operation.
With an ABEC-1 rating, it offers reliable precision for general industrial use.
Its wide temperature range makes it adaptable to various working environments.

Steel vs Ceramic Bearings: Strengths of 576-572 Bearing

576-572 Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
This material choice ensures high strength and resistance to wear in demanding applications.
The bearing’s dynamic thrust rating of 8,330 lbf (Ca90) supports axial load requirements.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 576-572 Bearing
The 576-572 Bearing is a reliable choice for heavy machinery like construction equipment and mining gear, where combined loads are common. Its tapered roller design handles both radial and thrust forces smoothly.

In automotive applications, 576-572 Bearing works well in wheel hubs and differential systems, thanks to its durable chrome steel construction. The inch sizing makes it a straightforward fit for many US-made vehicles.

For industrial fans and pumps, 576-572 Bearing’s open design simplifies lubrication and maintenance. The steel cage ensures long service life even in demanding environments.

Where Is 576-572 Bearing Used?
You’ll often spot 576-572 Bearing in agricultural machinery, particularly in gearboxes and drivetrains. Its robust build handles the rough conditions of fieldwork with ease.

In conveyor systems, 576-572 Bearing’s tapered rollers provide stable performance under heavy loads. The standard radial clearance offers flexibility for various operational needs.

Built for Heavy-Duty Use: 576-572 Bearing
This bearing excels in forestry equipment like log splitters and sawmills, where shock loads are frequent. The chrome steel rollers resist wear even under constant stress.

For railway applications, 576-572 Bearing’s precise tolerances ensure smooth operation in axle boxes. Its temperature range suits both cold and moderate climates.

Automotive vs Aerospace: Applications of 576-572 Bearing
In trucks and buses, 576-572 Bearing supports axles and transmissions reliably. The ABEC-1 rating balances performance and cost for commercial vehicles.

While not for aerospace, this bearing fits well in ground support equipment. Its static load capacity handles heavy lifting tasks with confidence.
