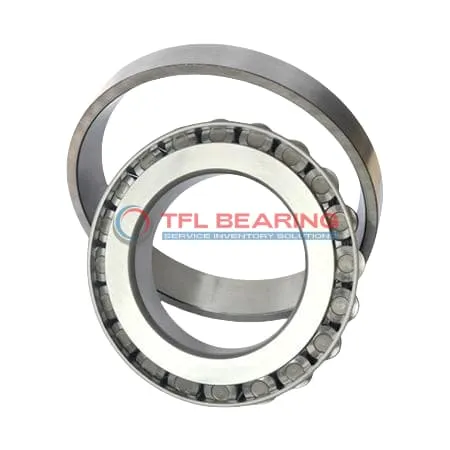

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-564

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-564

The 570X-564 is a single-row tapered roller bearing with a 2.76″ bore and 5.19″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44,100 lbf radially and 7,130 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like truck wheel hubs or heavy machinery where combined loads are common.

Weighing 5.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 570X-564
  • Brand TFL
  • Interchangeable Timken
  • Size 2.7559" x 5.1875" x 1.7501"
  • Bore Dia 2.7559"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 570X
  • Cup Part Number 564
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.4 lb

Features

How Does 570X-564 Bearing Handle Combined Loads?

570X-564 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs consistently in various environments.

570X-564 Bearing’s standard radial clearance allows for smooth operation under combined loads.
Its ABEC-1 rating ensures dependable precision for industrial applications.

Application

Industrial Uses of 570X-564 Bearing
570X-564 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 570X-564 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it compatible with many American-made vehicles.

For industrial conveyors, 570X-564 Bearing’s open design simplifies lubrication and maintenance, reducing downtime. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 570X-564 Bearing Used?
570X-564 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation.

In power transmission systems, 570X-564 Bearing supports shafts and gears, offering stability under dynamic loads. Its ABEC-1 rating provides a balance of precision and affordability for general industrial use.

Built for Heavy-Duty Use: 570X-564 Bearing
570X-564 Bearing excels in forestry equipment like log splitters, where its tapered rollers manage heavy radial and axial forces. The chrome steel rollers enhance wear resistance.

For railway applications, 570X-564 Bearing is used in axle boxes, ensuring reliable performance over long distances. Its temperature range suits both cold and moderate climates.

Automotive vs Aerospace: Applications of 570X-564 Bearing
In automotive systems, 570X-564 Bearing is found in drivetrains, handling high torque and load variations. Its inch measurements align with many US and UK standards.

For aerospace ground equipment, 570X-564 Bearing supports landing gear testing rigs, where precision and durability are key. The steel cage ensures longevity under frequent use.
