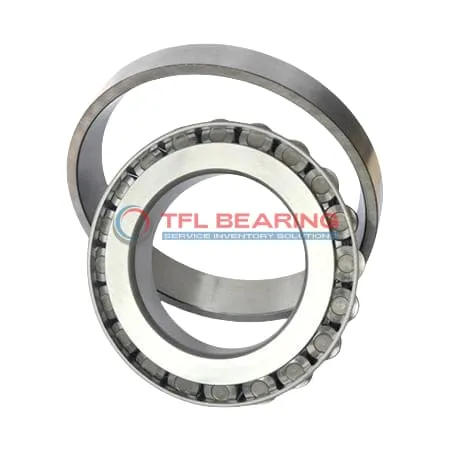

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-563A

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-563A

The 570X-563A is a single-row tapered roller bearing with a 2.76″ bore and 4.88″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing 3.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 570X-563A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.7559" x 4.875" x 1.4376"
  • Bore Dia 2.7559"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 4.72"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 570X
  • Cup Part Number 563A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.9 lb

Features

How Does 570X-563A Bearing Handle Combined Loads?

570X-563A Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Structural Advantages of 570X-563A Bearing

570X-563A Bearing features a single-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction provides durability and resistance to wear in heavy-duty applications.
Its standard radial clearance allows for smooth operation, while the open design simplifies maintenance.
The bearing’s effective center location ensures stable performance under varying load conditions.

Why Choose 570X-563A Bearing for Heavy-Duty Applications?

570X-563A Bearing’s robust design includes a steel cage and chrome steel rollers for enhanced durability.
It supports dynamic radial loads up to 44,100 lbf and static radial loads up to 58,900 lbf.
The tapered roller design ensures even load distribution, reducing stress on individual components.
With an ABEC-1 rating, it balances precision and performance for industrial use.

Application

Industrial Uses of 570X-563A Bearing
570X-563A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 570X-563A Bearing a Preferred Choice?
In automotive applications, 570X-563A Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken designs. Its open seal type simplifies lubrication and maintenance.

Built for Heavy-Duty Use: 570X-563A Bearing
For industrial conveyor systems, 570X-563A Bearing offers reliable performance with its high dynamic radial load capacity. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 570X-563A Bearing
While 570X-563A Bearing excels in automotive drivetrains, its inch measurements also make it useful in certain aerospace components. The standard radial clearance ensures smooth performance across different temperatures.

Perfect Fit for Automation: 570X-563A Bearing
In automated production lines, 570X-563A Bearing supports robotic arms and assembly systems with its combined load capability. The ABEC-1 rating provides sufficient precision for most industrial tasks.
