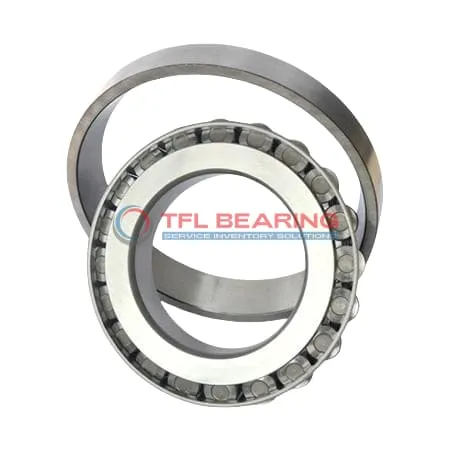

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-563

TS (Single Row Tapered Roller Bearings) (Imperial) 570X-563

The 570X-563 is a single-row tapered roller bearing with a 2.76″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 4.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 570X-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.7559" x 5" x 1.4376"
  • Bore Dia 2.7559"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.31"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 570X
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.2 lb

Features

Performance Features of 570X-563 Bearing

570X-563 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it adapts to various working environments.

How Is 570X-563 Bearing Engineered for Reliability?

570X-563 Bearing features precise cone and cup dimensions, ensuring smooth operation under heavy loads.
The tapered roller design distributes stress evenly, extending the bearing’s service life.
Its standard radial clearance options provide flexibility for different applications.
Maintenance is straightforward, with lubrication required for optimal performance.

Built for Durability: 570X-563 Bearing

570X-563 Bearing’s chrome steel construction resists wear, making it suitable for high-load scenarios.
The single-row design simplifies installation while maintaining structural integrity.
With a static radial load capacity of 58,900 lbf, it handles demanding industrial tasks.
Its ABEC-1 rating ensures consistent precision in various applications.

Steel vs Ceramic Bearings: Strengths of 570X-563 Bearing

570X-563 Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
This material choice provides excellent strength and fatigue resistance under heavy loads.
The open seal design allows for easy lubrication and maintenance.
Its compatibility with Timken models makes it a versatile replacement option.

Why Choose 570X-563 Bearing for Precision Tasks?

570X-563 Bearing’s tapered rollers ensure accurate load distribution, reducing operational stress.
The precise tolerances on cone and cup dimensions enhance overall performance.
With a dynamic thrust rating of 7,130 lbf, it handles axial loads effectively.
Its standard width and diameter simplify integration into existing systems.

Application

Industrial Uses of 570X-563 Bearing
570X-563 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability even in rugged conditions.

What Makes 570X-563 Bearing a Preferred Choice?
With its inch sizing and compatibility with Timken models, 570X-563 Bearing fits seamlessly into industrial gearboxes and power transmission systems. The open design simplifies lubrication, extending service life in high-load applications.

Built for Heavy-Duty Use: 570X-563 Bearing
You’ll often find 570X-563 Bearing in agricultural machinery, supporting axles and drivetrains that face constant stress. Its steel cage provides reliable performance, while the standard radial clearance accommodates thermal expansion.

Automotive vs Aerospace: Applications of 570X-563 Bearing
In automotive settings, 570X-563 Bearing works well in wheel hubs and differentials, thanks to its balanced load capacity. For aerospace ground equipment, it offers precision without compromising on strength.

Perfect Fit for Automation: 570X-563 Bearing
570X-563 Bearing suits conveyor systems in automated factories, where its tapered rollers maintain alignment under varying speeds. The ABEC-1 rating ensures consistent performance for routine industrial tasks.
