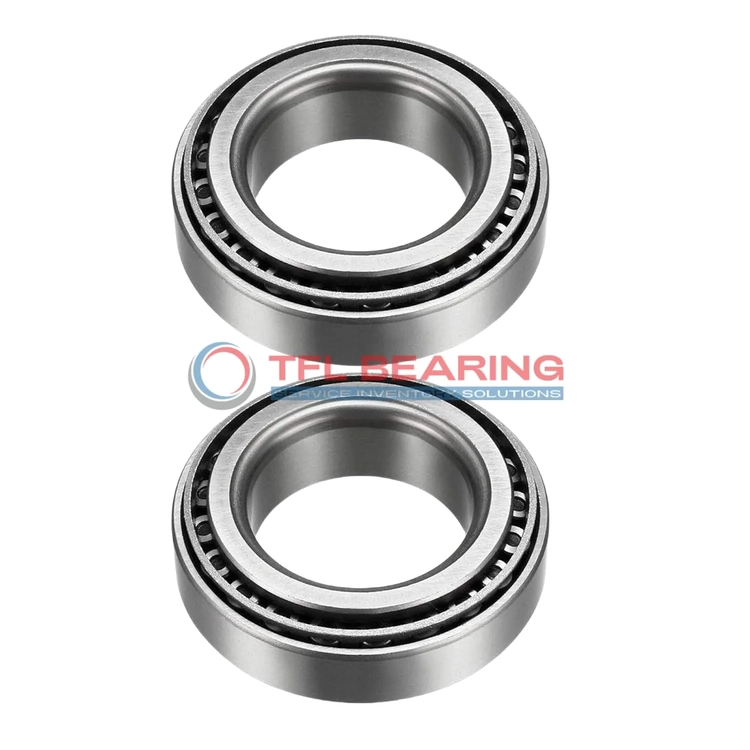

TS (Single Row Tapered Roller Bearings) (Imperial) 570-564

TS (Single Row Tapered Roller Bearings) (Imperial) 570-564

The 570-564 is a single-row tapered roller bearing with a 2.6875″ bore and 5.1875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 5.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 570-564
  • Brand TFL
  • Interchangeable Timken
  • Size 2.6875" x 5.1875" x 1.7501"
  • Bore Dia 2.6875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.66"
  • Cone Backface Backing Diameter 3.27"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 570
  • Cup Part Number 564
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.5 lb

Features

Performance Features of 570-564 Bearing

570-564 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a standard radial clearance, it provides reliable performance in various operating conditions.

570-564 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures smooth handling of both radial and thrust loads.

The open seal type allows for easy lubrication, maintaining optimal performance over time.
Weighing 5.5 lb, it balances strength and practicality for industrial use.

Application

Industrial Uses of 570-564 Bearing
The 570-564 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 570-564 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 570-564 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 570-564 Bearing Used?
You’ll often find 570-564 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles uneven loads. The standard radial clearance ensures smooth operation in varying conditions.

In manufacturing plants, 570-564 Bearing supports gearboxes and pulley systems, thanks to its high dynamic load capacity. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 570-564 Bearing
The 570-564 Bearing excels in forestry equipment like log splitters, where its tapered rollers manage heavy axial and radial forces. Its temperature range (-30° to 110°C) suits outdoor operations.

For railway applications, 570-564 Bearing’s steel cage and chrome steel rollers provide long-term reliability in freight car axles. The inch measurements simplify replacements in older systems.

Automotive vs Aerospace: Applications of 570-564 Bearing
In automotive settings, 570-564 Bearing is ideal for heavy-duty trucks, offering durability in wheel and transmission systems. Its static radial load capacity (58,900 lbf) handles frequent stops and starts.

For aerospace ground equipment, 570-564 Bearing supports cargo loaders and tow tractors, where its combined load capability is useful. The open design allows for regular maintenance checks.
