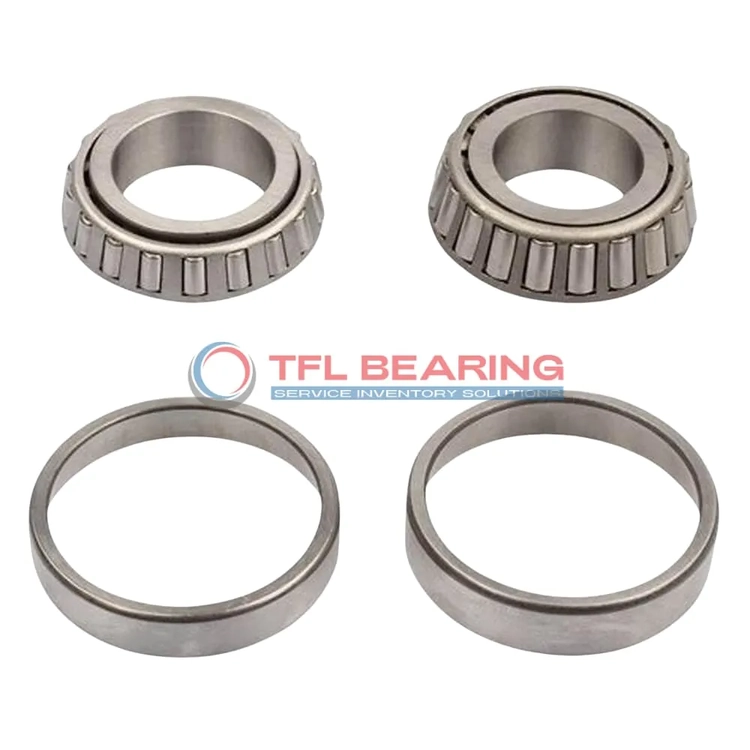

TS (Single Row Tapered Roller Bearings) (Imperial) 569-563X

TS (Single Row Tapered Roller Bearings) (Imperial) 569-563X

The 569-563X is a single-row tapered roller bearing with a 2.5576″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 4.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 569-563X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5576" x 5" x 1.4376"
  • Bore Dia 2.5576"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.54"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 569
  • Cup Part Number 563X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.5 lb

Features

How Does 569-563X Bearing Handle Combined Loads?

569-563X Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes 569-563X Bearing Suitable for Heavy-Duty Applications?

569-563X Bearing features a single-row tapered roller design, optimised for handling high radial and thrust loads.
The chrome steel construction provides excellent resistance to wear, ensuring a long service life.
Its standard radial clearance allows for smooth operation in diverse industrial settings.
Weighing just 4.5 lb, it balances strength and ease of installation.

Engineered for Precision: 569-563X Bearing

569-563X Bearing’s precise dimensions and tolerances ensure accurate performance in demanding applications.
The tapered roller design minimises friction, contributing to efficient operation.
With an ABEC-1 rating, it meets high standards for precision and reliability.
Its open design simplifies lubrication, reducing maintenance requirements.

Application

Industrial Uses of 569-563X Bearing
569-563X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 569-563X Bearing Used?
You’ll often find 569-563X Bearing in automotive applications, such as wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 569-563X Bearing
569-563X Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 569-563X Bearing
In automotive settings, 569-563X Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems due to its precise load handling. The ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 569-563X Bearing
569-563X Bearing works well in conveyor systems and robotic arms, where its tapered rollers provide smooth motion. The standard radial clearance offers flexibility for various automation needs.
