TS (Single Row Tapered Roller Bearings) (Imperial) 569-563

TS (Single Row Tapered Roller Bearings) (Imperial) 569-563

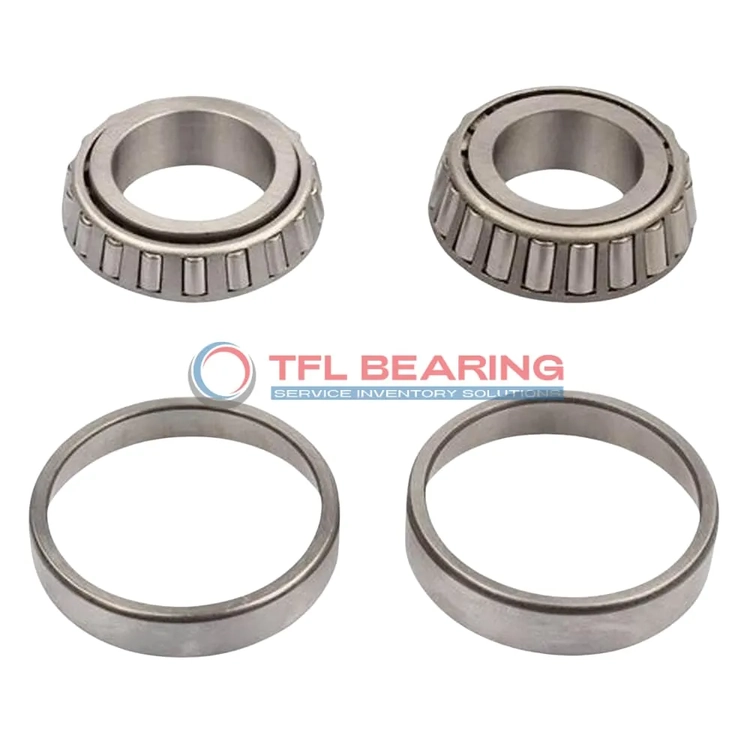

The 569-563 is a single-row tapered roller bearing with a 2.5576″ bore and 5″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 4.5 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 569-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5576" x 5" x 1.4375"
  • Bore Dia 2.5576"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.54"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 569
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.5 lb

Features

How Is 569-563 Bearing Engineered for Reliability?

569-563 Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring dependable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

569-563 Bearing’s standard radial clearance options provide flexibility for different installation needs.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 569-563 Bearing
The 569-563 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 569-563 Bearing Used?
You’ll often find 569-563 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a good fit for older equipment still using imperial measurements.

Built for Heavy-Duty Use: 569-563 Bearing
In industrial gearboxes, 569-563 Bearing provides reliable performance under continuous operation. Its open design allows for easy lubrication, extending service life in high-temperature conditions.

Automotive vs Aerospace: Applications of 569-563 Bearing
In automotive applications, 569-563 Bearing is ideal for wheel hubs and differentials, offering stability under heavy loads. While not typically used in aerospace, its precision makes it suitable for ground support equipment.

Essential Roles of 569-563 Bearing
For conveyor systems in manufacturing plants, 569-563 Bearing ensures smooth operation with its standard radial clearance. The steel cage adds extra strength, reducing wear over time.
