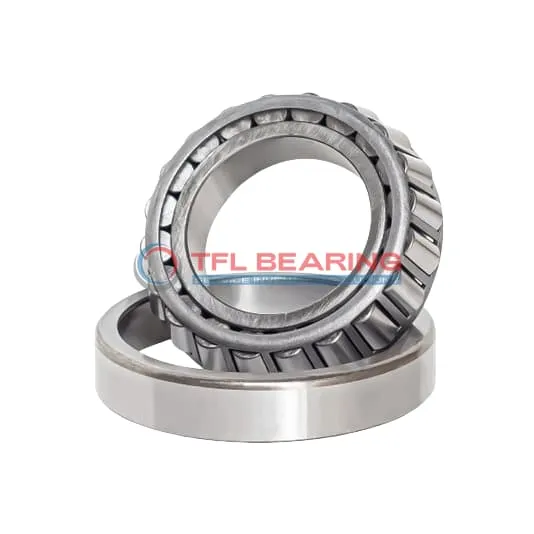

TS (Single Row Tapered Roller Bearings) (Imperial) 567X-563

TS (Single Row Tapered Roller Bearings) (Imperial) 567X-563

The 567X-563 is a single-row tapered roller bearing with a 2.875″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for heavy-duty use.

Its open design requires regular lubrication but allows for easy maintenance. The steel cage ensures durability, while the standard radial clearance suits various applications.

This bearing is interchangeable with Timken models, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4 lb, it operates smoothly in temperatures from -30°C to 110°C. Compliant with RoHS and REACH standards, it’s a practical choice for engineers and maintenance teams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567X-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 5" x 1.4375"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.190"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.87"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567X
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4 lb

Features

Performance Features of 567X-563 Bearing

567X-563 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 567X-563 Bearing Engineered for Reliability?

567X-563 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent wear resistance, extending its service life.
Precision tolerances ensure smooth operation, even under high radial and thrust loads.
Its standard radial clearance allows for flexibility in different applications.

Built for Durability: 567X-563 Bearing

567X-563 Bearing’s robust design includes a steel cage that maintains roller positioning.
The tapered roller construction efficiently distributes loads, reducing stress on components.
With a static radial load capacity of 58,900 lbf, it handles demanding industrial uses.
Its open seal type simplifies maintenance while ensuring reliable performance.

Steel vs Ceramic Bearings: Strengths of 567X-563 Bearing

567X-563 Bearing uses chrome steel for both rings and rollers, offering cost-effective durability.
The material choice provides excellent strength and resistance to wear in heavy-load scenarios.
Unlike ceramic options, it maintains performance across a wide temperature range.
Its ABEC-1 rating ensures consistent precision for general industrial applications.

Application

Industrial Uses of 567X-563 Bearing
The 567X-563 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

What Makes 567X-563 Bearing a Preferred Choice?
In automotive applications, 567X-563 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 567X-563 Bearing
For industrial gearboxes, 567X-563 Bearing offers smooth operation and long service life, thanks to its steel cage and precise tolerances. It’s a solid choice for high-load scenarios.

Automotive vs Aerospace: Applications of 567X-563 Bearing
While 567X-563 Bearing excels in truck axles and agricultural machinery, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance across industries.
