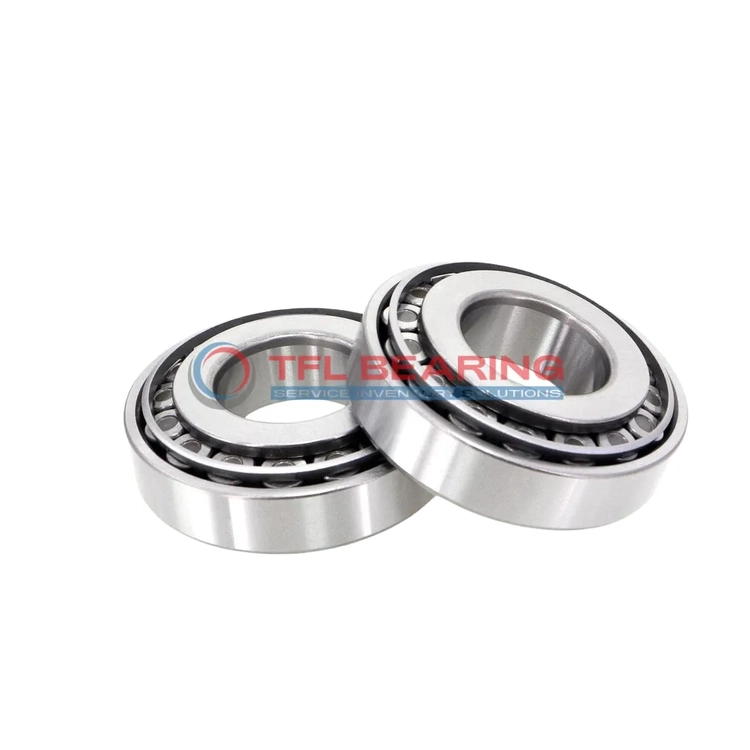

TS (Single Row Tapered Roller Bearings) (Imperial) 567A-563X

TS (Single Row Tapered Roller Bearings) (Imperial) 567A-563X

The 567A-563X is a single-row tapered roller bearing with a 2.8125″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust-wise, making it versatile for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

The standard radial clearance ensures consistent performance, with options for C3, C4, or C5 available. Its ABEC-1 rating balances precision and affordability for general applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567A-563X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.8125" x 5" x 1.4376"
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567A
  • Cup Part Number 563X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.100 lb

Features

Performance Features of 567A-563X Bearing

567A-563X Bearing is crafted with chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.

The tapered roller design of 567A-563X Bearing provides effective load distribution, reducing wear.
With a standard radial clearance, it offers reliable performance in various operating conditions.

567A-563X Bearing operates within a temperature range of -30° to 110°C, adapting to different environments.
The steel cage maintains roller alignment, enhancing the bearing’s longevity and stability.

Installation is straightforward due to the precise tolerances of 567A-563X Bearing.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 567A-563X Bearing
567A-563X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 567A-563X Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for North American vehicle models.

For industrial gearboxes, 567A-563X Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear over time.

What Makes 567A-563X Bearing a Preferred Choice?
567A-563X Bearing excels in agricultural machinery, such as tractors, where its robust design withstands heavy loads and rough conditions. The standard radial clearance ensures smooth operation.

In conveyor systems, 567A-563X Bearing’s tapered rollers manage both radial and axial forces efficiently. Its compatibility with Timken models simplifies replacements and maintenance.

Built for Heavy-Duty Use: 567A-563X Bearing
567A-563X Bearing is ideal for mining equipment, where its high dynamic load capacity ensures reliability. The chrome steel rollers resist wear, even in abrasive environments.

For railway applications, 567A-563X Bearing supports axle boxes, handling combined loads with ease. Its temperature range makes it suitable for varying climatic conditions.

Automotive vs Aerospace: Applications of 567A-563X Bearing
In automotive systems, 567A-563X Bearing is used in drivetrains, offering durability and precision. Its inch measurements align with standard industry specifications.

For aerospace ground equipment, 567A-563X Bearing provides reliable performance in load-handling devices. The ABEC-1 rating ensures consistent quality for critical applications.
