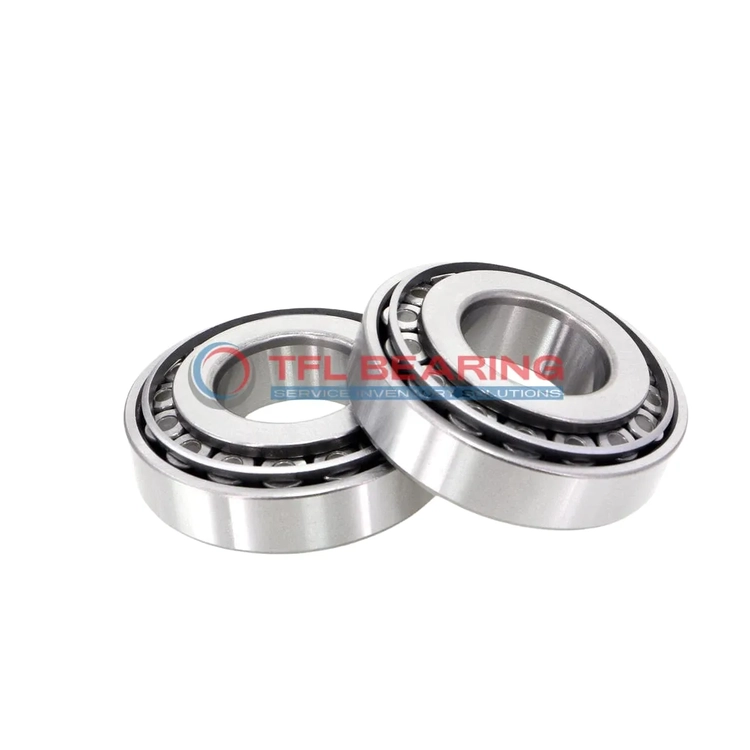

TS (Single Row Tapered Roller Bearings) (Imperial) 567A-563

TS (Single Row Tapered Roller Bearings) (Imperial) 567A-563

The 567A-563 is a single-row tapered roller bearing with a 2.8125″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 4.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567A-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.8125" x 5" x 1.4375"
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567A
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.100 lb

Features

Performance Features of 567A-563 Bearing

567A-563 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 567A-563 Bearing Engineered for Reliability?

567A-563 Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 7,130 lbf makes it suitable for demanding applications.
The bearing requires lubrication, but its robust design minimises maintenance needs.

Built for Durability: 567A-563 Bearing

567A-563 Bearing’s chrome steel components provide excellent wear resistance, even under heavy loads.
The tapered roller design distributes stress evenly, improving fatigue life.
With a static radial load capacity of 58,900 lbf, it’s reliable for long-term use.
Its ABEC-1 rating ensures consistent precision in industrial applications.

Steel vs Ceramic Bearings: Strengths of 567A-563 Bearing

567A-563 Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
The material choice ensures high load capacity and resistance to wear in harsh conditions.
Unlike ceramic bearings, it’s more cost-effective for heavy-duty industrial use.
Its standard radial clearance and lubrication requirements make it versatile for various setups.

Application

Industrial Uses of 567A-563 Bearing
The 567A-563 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 567A-563 Bearing Used?
You’ll often find 567A-563 Bearing in automotive applications like truck wheel hubs, where its high dynamic radial load capacity supports smooth performance. The inch sizing makes it a reliable choice for North American vehicle models.

Built for Heavy-Duty Use: 567A-563 Bearing
In industrial gearboxes, 567A-563 Bearing provides stable operation under heavy loads, thanks to its robust steel cage and tapered roller design. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 567A-563 Bearing
While 567A-563 Bearing excels in automotive systems like axles, its precision also suits aerospace ground support equipment. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 567A-563 Bearing
In automated production lines, 567A-563 Bearing supports conveyor systems with reliable load handling. Its standard radial clearance offers flexibility for various operational needs.
