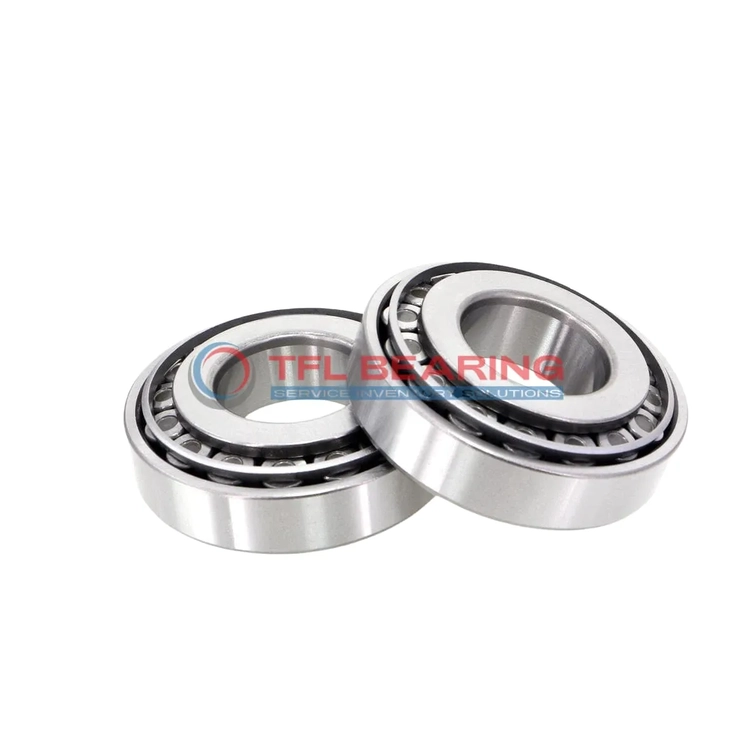

TS (Single Row Tapered Roller Bearings) (Imperial) 567-S-563

TS (Single Row Tapered Roller Bearings) (Imperial) 567-S-563

The 567-S-563 is a single-row tapered roller bearing with a 2.8125″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567-S-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.8125" x 5" x 1.4375"
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.62"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567-S
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4 lb

Features

Performance Features of 567-S-563 Bearing

567-S-563 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

567-S-563 Bearing requires lubrication but offers standard radial clearance options for flexibility.
Its single-row tapered design balances durability and efficiency in imperial-sized applications.

Application

Built for Heavy-Duty Use: 567-S-563 Bearing
The 567-S-563 Bearing is a go-to choice for industrial machinery, especially in heavy-load scenarios like conveyor systems and gearboxes. Its tapered roller design handles combined loads efficiently, making it reliable for continuous operation.

In automotive applications, 567-S-563 Bearing works well in wheel hubs and differentials, where its chrome steel construction ensures durability. The imperial sizing makes it a seamless fit for North American vehicle designs.

For construction equipment, this bearing’s robust build supports high radial and thrust loads in excavators and cranes. The open design simplifies maintenance, even in dusty or demanding environments.

567-S-563 Bearing also finds use in agricultural machinery, such as tractors and harvesters, where its ABEC-1 rating balances precision and cost-effectiveness. The steel cage adds extra resilience against wear over time.
