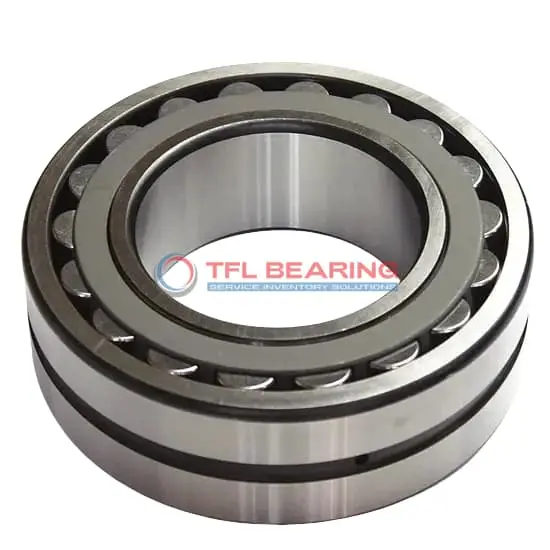

22234 CY C3 W33 Double Row Spherical Roller Bearing

22234 CY C3 W33 Double Row Spherical Roller Bearing

The 22234 CY C3 W33 is a double-row spherical roller bearing with a 170mm bore and 310mm outer diameter, built from tough chrome steel. It handles combined loads up to 265949 lbf and runs smoothly at speeds up to 2600 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various conditions.

With a C3 radial clearance, it’s suitable for applications where thermal expansion is a factor. Ideal for heavy machinery like crushers or industrial gearboxes that require robust performance.

Weighing 28kg, it’s a sturdy choice for demanding environments. Compliant with RoHS and REACH standards, ensuring safety and reliability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22234 CY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 170 x 310 x 86 mm
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 310 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 203 mm
  • Shoulder/Recess Dia Of Outer Ring 267 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 265949 lbf
  • Static Radial Load 328221 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 28 kg
  • Price （US$） US$321.84

Features

Performance Features of 22234 CY C3 W33 Bearing

22234 CY C3 W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 265949 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and wear.
With a maximum speed of 2600 rpm, it delivers reliable performance under demanding conditions.

22234 CY C3 W33 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its C3 radial clearance allows for thermal expansion, ensuring consistent operation.

The lubrication groove and holes in 22234 CY C3 W33 Bearing facilitate easy maintenance.
This design prolongs service life and reduces downtime.

22234 CY C3 W33 Bearing’s double-row spherical rollers accommodate misalignment.
This feature enhances durability and performance in challenging applications.

Application

Industrial Uses of 22234 CY C3 W33 Bearing
22234 CY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effortlessly. The brass cage ensures smooth operation even under high stress.

In mining equipment, 22234 CY C3 W33 Bearing’s robust construction withstands harsh conditions, making it ideal for conveyor systems and gearboxes. Its C3 radial clearance allows for thermal expansion in demanding environments.

For wind turbines, 22234 CY C3 W33 Bearing’s spherical roller design accommodates misalignment, ensuring reliable performance in variable weather. The lubrication groove simplifies maintenance, extending service life.

Where Is 22234 CY C3 W33 Bearing Used?
You’ll often find 22234 CY C3 W33 Bearing in paper mills, supporting rollers that endure constant heavy loads. Its chrome steel rollers provide durability, while the open design allows for easy lubrication.

In construction machinery, 22234 CY C3 W33 Bearing excels in applications like cranes and excavators, where its high dynamic load capacity is crucial. The metric sizing ensures compatibility with global equipment standards.

Built for Heavy-Duty Use: 22234 CY C3 W33 Bearing
22234 CY C3 W33 Bearing is a go-to for steel plants, handling the intense loads of rolling mills with ease. Its temperature range up to 200°C makes it suitable for high-heat environments.

In marine applications, 22234 CY C3 W33 Bearing’s corrosion-resistant materials and lubrication system ensure longevity. The spherical rollers adapt to shaft deflections, reducing wear over time.

Automotive vs Aerospace: Applications of 22234 CY C3 W33 Bearing
In automotive testing rigs, 22234 CY C3 W33 Bearing supports high-speed rotations, thanks to its balanced design. The brass cage minimizes friction, enhancing efficiency.

For aerospace ground equipment, 22234 CY C3 W33 Bearing’s precision and load capacity make it reliable. Its compliance with RoHS and REACH standards ensures environmental safety.
