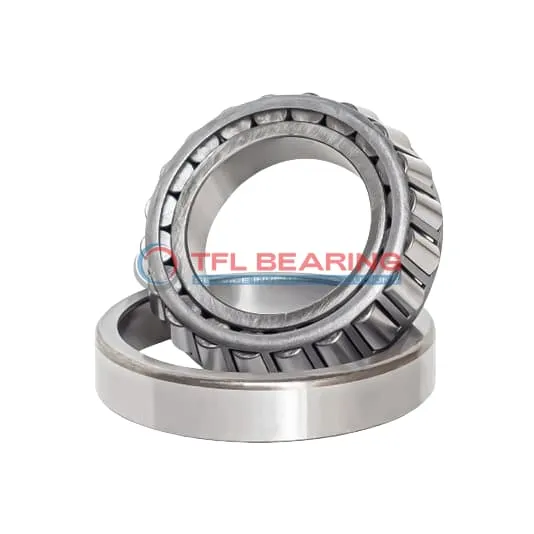

TS (Single Row Tapered Roller Bearings) (Imperial) 567-563A

TS (Single Row Tapered Roller Bearings) (Imperial) 567-563A

The 567-563A is a single-row tapered roller bearing with a 2.875″ bore and 4.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567-563A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 4.875" x 1.4376"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.87"
  • Cone Backface Backing Diameter 3.46"
  • Cup Frontface Backing Diameter 4.72"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567
  • Cup Part Number 563A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.600 lb

Features

How Does 567-563A Bearing Handle Combined Loads?

567-563A Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose 567-563A Bearing for Heavy-Duty Applications?

567-563A Bearing features a single-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its static radial load capacity of 58,900 lbf makes it suitable for heavy-duty machinery.
The open seal type allows for easy lubrication, maintaining performance over time.

Engineered for Precision: 567-563A Bearing

567-563A Bearing’s precise cone and cup dimensions ensure accurate alignment and reduced vibration.
The tapered roller design distributes loads evenly, enhancing stability and longevity.
With an ABEC-1 rating, it meets standard precision requirements for industrial applications.
The steel cage and chrome steel rollers work together to minimise wear and tear.

Steel vs Ceramic Bearings: Strengths of 567-563A Bearing

567-563A Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
This material choice ensures reliable performance under high dynamic and static loads.
The steel cage further enhances stability, making it a robust choice for industrial use.
Its compatibility with standard lubrication methods simplifies maintenance and upkeep.

Reliability Factors of 567-563A Bearing

567-563A Bearing’s design ensures consistent performance even under heavy combined loads.
The chrome steel components resist wear, while the tapered rollers handle stress effectively.
With a dynamic thrust rating of 7,130 lbf, it excels in applications requiring both radial and axial support.
Its standard radial clearance options allow for flexibility in various operating conditions.

Application

Industrial Uses of 567-563A Bearing
567-563A Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 567-563A Bearing Used?
You’ll often find 567-563A Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it a reliable choice for North American equipment manufacturers.

Built for Heavy-Duty Use: 567-563A Bearing
567-563A Bearing excels in mining applications, where its robust design withstands high loads and harsh conditions. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of 567-563A Bearing
In automotive systems, 567-563A Bearing supports wheel hubs and differentials, ensuring smooth performance. While not typically used in aerospace, its precision makes it ideal for ground-based heavy vehicles.

Essential Roles of 567-563A Bearing
567-563A Bearing plays a key role in industrial fans and pumps, where its tapered rollers manage both radial and axial forces. The standard radial clearance offers flexibility for various operational needs.
