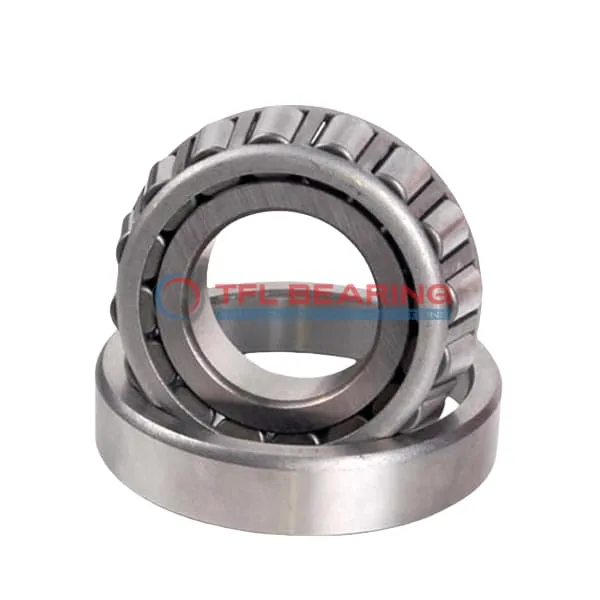

TS (Single Row Tapered Roller Bearings) (Imperial) 566-564

TS (Single Row Tapered Roller Bearings) (Imperial) 566-564

The 566-564 is a single row tapered roller bearing with a 2.75″ bore and 5.1875″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 5.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 566-564
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 5.1875" x 1.7501"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.35"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 566
  • Cup Part Number 564
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.4 lb

Features

Why Choose 566-564 Bearing for Precision Tasks?

566-564 Bearing features a single row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and reliable performance in demanding conditions.

The bearing’s dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
With a standard radial clearance option, it offers flexibility for various operational needs.

566-564 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, reducing friction and extending service life.

Application

Common Applications of 566-564 Bearing
In industrial settings, 566-564 Bearing is widely used in heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 566-564 Bearing Used?
You’ll often find 566-564 Bearing in automotive applications, particularly in wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a fit for many American-made vehicles.

Built for Heavy-Duty Use: 566-564 Bearing
This bearing excels in construction equipment, such as bulldozers and cranes, where its robust design withstands high dynamic loads. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 566-564 Bearing
While 566-564 Bearing is common in trucks and buses for its load capacity, it’s also suitable for aerospace ground support equipment. The ABEC-1 rating ensures reliable performance without over-engineering for less critical uses.

Perfect Fit for Automation: 566-564 Bearing
In automated production lines, 566-564 Bearing supports robotic arms and assembly units, offering smooth operation under varying loads. Its steel cage adds stability, making it a dependable choice for repetitive tasks.
