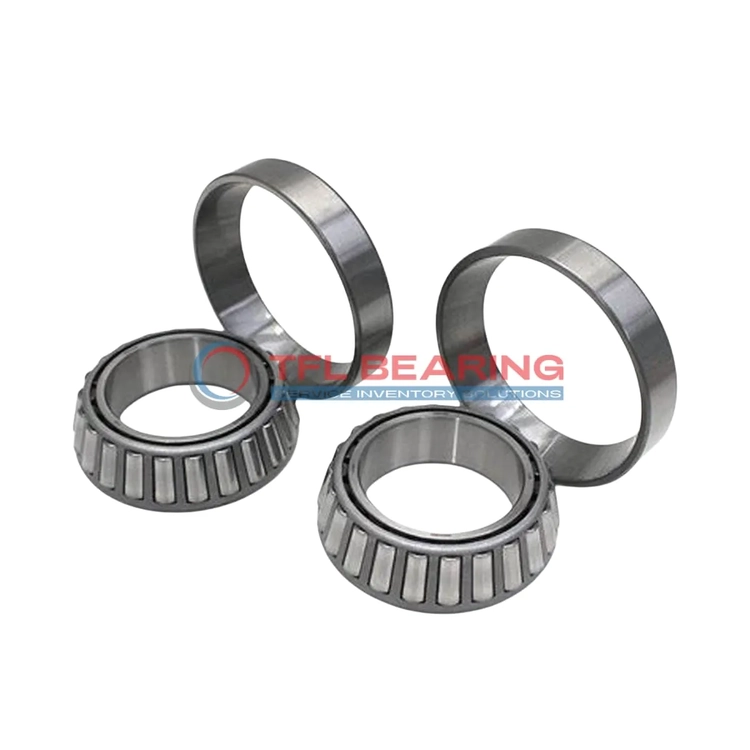

TS (Single Row Tapered Roller Bearings) (Imperial) 565-564

TS (Single Row Tapered Roller Bearings) (Imperial) 565-564

The 565-564 is a single-row tapered roller bearing with a 2.5″ bore and 5.1875″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures smooth operation. The bearing performs well in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes or wheel hubs where combined loads are common.

Weighing 5.8 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-564
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5.1875" x 1.7501"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 564
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.8 lb

Features

How Is 565-564 Bearing Engineered for Reliability?

565-564 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Structural Advantages of 565-564 Bearing

565-564 Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The precise cone and cup width tolerances ensure smooth operation and easy installation.
Chrome steel construction enhances durability, while the open seal type allows for easy lubrication.
Its effective centre location of -0.32″ contributes to stable performance under heavy loads.

Why Choose 565-564 Bearing for Precision Tasks?

565-564 Bearing’s ABEC-1 rating ensures consistent precision in industrial applications.
The standard radial clearance option provides flexibility for different operational needs.
With a static radial load capacity of 58,900 lbf, it handles demanding tasks with ease.
Its steel cage design promotes even load distribution, reducing wear over time.

Application

Industrial Uses of 565-564 Bearing
The 565-564 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 565-564 Bearing Used?
You’ll often find 565-564 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 565-564 Bearing
This bearing excels in industrial fans and pumps, thanks to its robust steel cage and high dynamic load capacity. The open design simplifies lubrication, extending service life in continuous operation.

Automotive vs Aerospace: Applications of 565-564 Bearing
In automotive settings, 565-564 Bearing supports drivetrain components, while its precision makes it suitable for aerospace landing gear systems. The ABEC-1 rating balances performance and cost effectively.

Perfect Fit for Automation: 565-564 Bearing
For conveyor systems in factories, 565-564 Bearing offers smooth operation under radial and thrust loads. Its standard radial clearance adapts well to varying operational temperatures.
