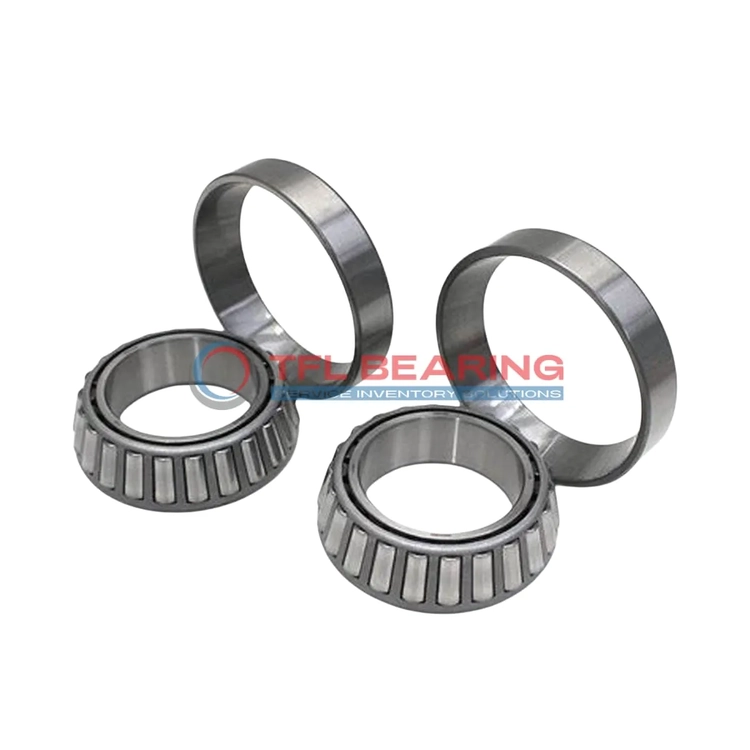

TS (Single Row Tapered Roller Bearings) (Imperial) 565-563X

TS (Single Row Tapered Roller Bearings) (Imperial) 565-563X

The 565-563X is a single-row tapered roller bearing with a 2.5″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 44100 lbf radially and 7130 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive systems where combined loads are common.

Weighing 4.6 lb, it offers a balance of strength and manageable size. Compliant with RoHS and REACH standards for safe use.

The standard radial clearance ensures reliable performance, with options for C3, C4, or C5 clearances if needed. Its ABEC-1 rating confirms consistent precision for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-563X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5" x 1.4376"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 563X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.6 lb

Features

How Does 565-563X Bearing Handle Combined Loads?

565-563X Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Application

Industrial Uses of 565-563X Bearing
The 565-563X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in rugged environments.

In automotive applications, 565-563X Bearing fits well in wheel hubs and differential systems, providing reliable performance under high stress. The inch sizing makes it a practical choice for American and British vehicle models.

For industrial conveyor systems, 565-563X Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds stability, making it suitable for continuous operation.

Where Is 565-563X Bearing Used?
You’ll often find 565-563X Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even under heavy use.

In power transmission systems, 565-563X Bearing supports shafts and gears, thanks to its robust construction. The ABEC-1 rating balances precision and cost-effectiveness for general industrial needs.

Built for Heavy-Duty Use: 565-563X Bearing
The 565-563X Bearing excels in forestry machinery, where its tapered rollers manage uneven loads effortlessly. Its temperature range of -30° to 110°C ensures reliability in varying climates.

For railway applications, 565-563X Bearing’s dynamic radial load capacity of 44,100 lbf makes it a dependable choice. The steel cage and chrome steel rollers enhance its wear resistance over time.

Automotive vs Aerospace: Applications of 565-563X Bearing
In automotive settings, 565-563X Bearing is ideal for axles and transmissions, offering a balance of strength and precision. Its inch measurements align with standard automotive parts.

For aerospace ground support equipment, 565-563X Bearing provides reliable performance without the need for specialised maintenance. The open seal design simplifies inspections and lubrication.
