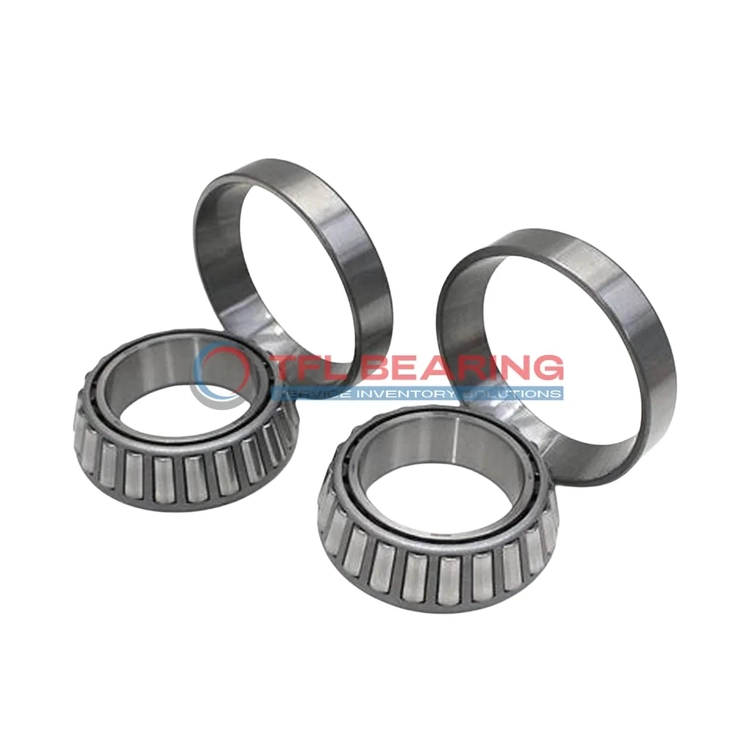

TS (Single Row Tapered Roller Bearings) (Imperial) 565-562

TS (Single Row Tapered Roller Bearings) (Imperial) 565-562

The 565-562 is a single-row tapered roller bearing with a 2.5″ bore and 5.12″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

Interchangeable with Timken bearings, it’s a reliable choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 4.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-562
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5.12" x 1.4376"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.12"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.57"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 562
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.900 lb

Features

How Does 565-562 Bearing Handle Combined Loads?

565-562 Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

What Makes 565-562 Bearing Durable?

565-562 Bearing features chrome steel construction, providing excellent resistance to wear and fatigue.
The tapered roller design distributes loads evenly, extending the bearing’s service life.
Its static radial load capacity of 58,900 lbf ensures reliability in demanding environments.
The open design allows for easy lubrication, maintaining smooth operation over time.

Engineered for Precision: 565-562 Bearing

565-562 Bearing’s single-row tapered roller design ensures precise load handling and alignment.
The chrome steel rollers and rings reduce friction, promoting efficient performance.
With an ABEC-1 rating, it meets standard precision requirements for various applications.
The bearing’s effective center location of -0.32″ enhances stability during operation.

Application

Industrial Uses of 565-562 Bearing
The 565-562 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 565-562 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. The imperial sizing makes it a preferred choice for North American vehicle models.

For industrial fans and pumps, 565-562 Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear over time.

Where Is 565-562 Bearing Used?
You’ll often find 565-562 Bearing in conveyor systems, where its ability to handle heavy radial loads keeps operations smooth. The standard radial clearance offers flexibility for various industrial setups.

In mining equipment, 565-562 Bearing’s robust design withstands harsh conditions, making it a reliable choice for crushers and screens. Its ABEC-1 rating ensures consistent performance without over-engineering.

Built for Heavy-Duty Use: 565-562 Bearing
The 565-562 Bearing excels in applications like gearboxes, where its tapered rollers distribute loads evenly. Its chrome steel rollers and rings provide long-lasting performance under stress.

In material handling systems, 565-562 Bearing’s effective center location helps maintain alignment, reducing vibration. The steel cage further enhances its reliability in continuous operation.

Automotive vs Aerospace: Applications of 565-562 Bearing
In automotive systems, 565-562 Bearing is ideal for axles and transmissions, offering a balance of strength and precision. Its imperial sizing aligns with many US-made components.

For aerospace ground support equipment, 565-562 Bearing’s temperature tolerance (-30° to 110°C) ensures reliability in varying conditions. However, it’s not typically used in-flight due to ABEC-1 limitations.
