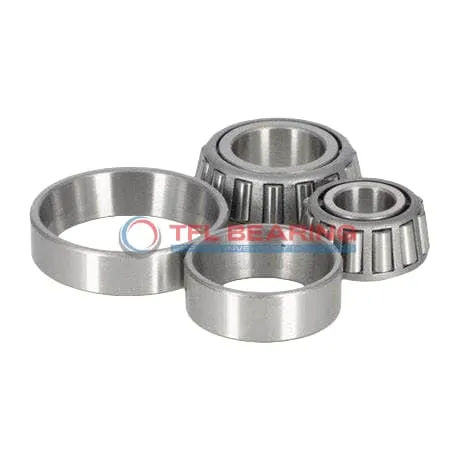

TS (Single Row Tapered Roller Bearings) (Imperial) 5595-5520

TS (Single Row Tapered Roller Bearings) (Imperial) 5595-5520

The 5595-5520 is a single-row tapered roller bearing with a 2.5938″ bore and 4.7343″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 63000 lbf radially and 10000 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like automotive axles or machinery where combined loads are common.

Weighing 4.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance ensures consistent performance, with options for C3/C4/C5 available. Its ABEC-1 rating balances precision and affordability for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5595-5520
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5938" x 4.7343" x 1.7499"
  • Bore Dia 2.5938"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7343"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7499"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.66"
  • Cone Backface Backing Diameter 3.27"
  • Cup Frontface Backing Diameter 4.56"
  • Cup Backface Backing Diameter 4.13"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5595
  • Cup Part Number 5520
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63000 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.7 lb

Features

Performance Features of 5595-5520 Bearing

5595-5520 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 63,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 5595-5520 Bearing Engineered for Reliability?

5595-5520 Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 10,000 lbf makes it suitable for demanding industrial uses.
The open design allows for easy lubrication, maintaining performance over time.

Built for Durability: 5595-5520 Bearing

5595-5520 Bearing’s chrome steel components provide excellent wear resistance, even under heavy loads.
The precise cone and cup dimensions ensure proper alignment, reducing stress on the rollers.
With a static radial load capacity of 73,500 lbf, it delivers reliable performance in tough conditions.
The ABEC-1 rating confirms its consistent quality and precision.

Steel vs Ceramic Bearings: Strengths of 5595-5520 Bearing

5595-5520 Bearing uses chrome steel for both rollers and rings, balancing cost and performance.
This material choice ensures high strength and resistance to wear in industrial applications.
The bearing’s dynamic radial rating of 16,300 lbf at 90 million revolutions highlights its longevity.
Its standard lubrication requirement simplifies maintenance without compromising reliability.

Application

Industrial Uses of 5595-5520 Bearing
5595-5520 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 5595-5520 Bearing Used?
You’ll often find 5595-5520 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise inch sizing makes it a reliable choice for vehicles requiring consistent performance under heavy loads.

Built for Heavy-Duty Use: 5595-5520 Bearing
5595-5520 Bearing excels in industrial gearboxes, providing smooth operation under high radial and thrust loads. The steel cage adds extra strength, making it suitable for long-term use in demanding environments.

Automotive vs Aerospace: Applications of 5595-5520 Bearing
In automotive systems, 5595-5520 Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear mechanisms. Its ABEC-1 rating ensures reliable performance across different industries.

Practical Applications of 5595-5520 Bearing
5595-5520 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design handles uneven loads. The open seal type allows for easy lubrication, extending its service life.
