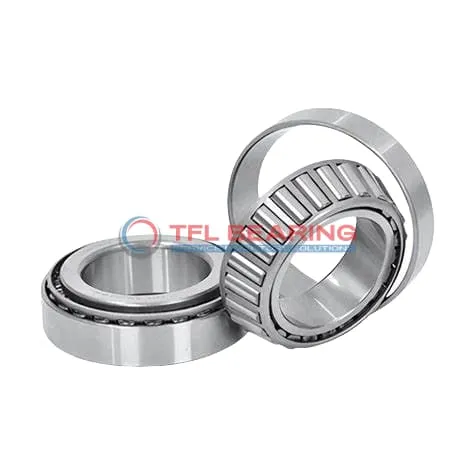

TS (Single Row Tapered Roller Bearings) (Imperial) 5578V-5535

TS (Single Row Tapered Roller Bearings) (Imperial) 5578V-5535

The 5578V-5535 is a single-row tapered roller bearing with a 2.125″ bore and 4.8125″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 63000 lbf radially and 10000 lbf in thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. It’s well-suited for applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 5.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

The standard radial clearance and ABEC-1 rating provide dependable precision for general industrial use. Its tapered roller design ensures even load distribution, enhancing longevity.

Ideal for maintenance teams needing a reliable bearing that balances radial and thrust load capacity. The clearances and tolerances are designed for straightforward installation and consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5578V-5535
  • Brand TFL
  • Interchangeable Timken
  • Size 2.125" x 4.8125" x 1.7187"
  • Bore Dia 2.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7187"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.64"
  • Cone Backface Backing Diameter 2.87"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.17"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5578V
  • Cup Part Number 5535
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63000 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.7 lb

Features

Why Choose 5578V-5535 Bearing for Precision Tasks?

5578V-5535 Bearing is crafted with chrome steel rings and rollers, ensuring high precision in combined load applications.
Its dynamic radial load capacity reaches 63,000 lbf, making it suitable for demanding industrial environments.

The single-row tapered roller design provides stability and efficient load distribution.
With a standard radial clearance, it offers reliable performance across various operating conditions.

5578V-5535 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its steel cage maintains roller alignment, reducing friction and extending service life.

The bearing requires lubrication, but its robust construction minimises maintenance needs.
It is interchangeable with Timken bearings, offering flexibility in replacements.

Application

Industrial Uses of 5578V-5535 Bearing
5578V-5535 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 5578V-5535 Bearing supports wheel hubs and drivetrains, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial gearboxes, 5578V-5535 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 5578V-5535 Bearing Used?
5578V-5535 Bearing finds its place in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation.

In mining equipment, 5578V-5535 Bearing’s ability to handle heavy loads makes it ideal for conveyor systems and crushers. The ABEC-1 rating provides a balance of precision and cost-effectiveness.

Built for Heavy-Duty Use: 5578V-5535 Bearing
5578V-5535 Bearing excels in forestry machinery, where its tapered rollers manage both radial and axial forces. The chrome steel rollers resist wear, even in dusty environments.

For railway applications, 5578V-5535 Bearing’s durability ensures reliable performance in freight car axles. Its temperature range suits various climatic conditions.

Automotive vs Aerospace: Applications of 5578V-5535 Bearing
In automotive systems, 5578V-5535 Bearing is often found in truck differentials, handling high torque loads. The inch measurements align with standard US automotive parts.

For aerospace ground equipment, 5578V-5535 Bearing supports heavy-duty trolleys and loaders. Its compliance with RoHS and REACH standards ensures environmental safety.
