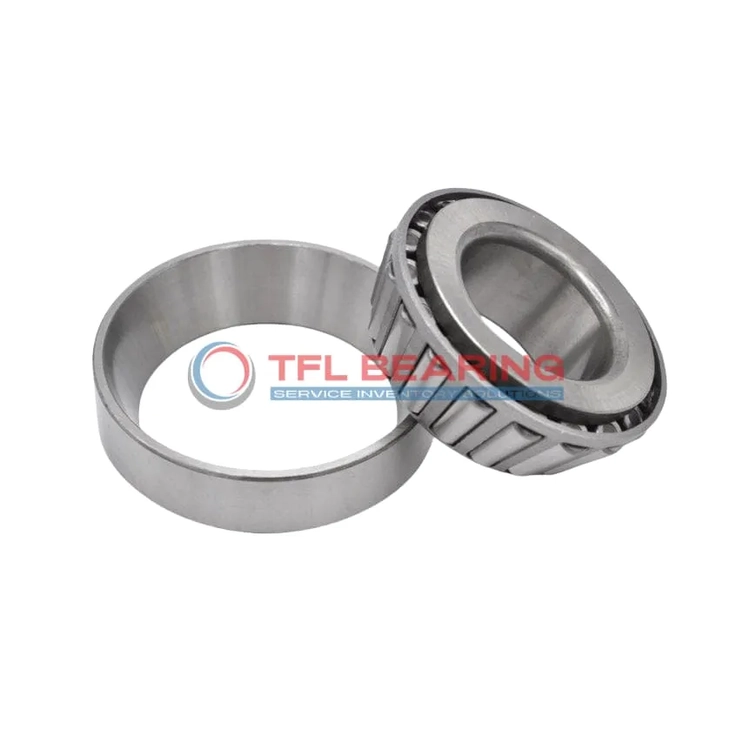

TS (Single Row Tapered Roller Bearings) (Imperial) 5565-5535

TS (Single Row Tapered Roller Bearings) (Imperial) 5565-5535

The 5565-5535 is a single-row tapered roller bearing with a 2-inch bore and 4.8125-inch outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 53,200 lbf radially and 8,460 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 5.9 lb, it balances strength and practicality. Compliant with RoHS and REACH standards for safe usage.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design efficiently handles both radial and thrust loads.

Perfect for industrial gearboxes or construction equipment, where durability and load capacity are key. The precise tolerances and robust construction make it a dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5565-5535
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 4.8125" x 1.7188"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.56"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.17"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5565
  • Cup Part Number 5535
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 53200 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.9 lb

Features

Structural Advantages of 5565-5535 Bearing

5565-5535 Bearing features a single-row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 53,200 lbf, providing reliable performance under heavy loads.
With a static radial load of 73,500 lbf, it offers stability and long-term reliability.

5565-5535 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in various operating conditions.

Application

Industrial Uses of 5565-5535 Bearing
The 5565-5535 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 5565-5535 Bearing Used?
You’ll often find the 5565-5535 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for North American vehicle models.

Built for Heavy-Duty Use: 5565-5535 Bearing
This bearing excels in industrial gearboxes, where its high dynamic radial load capacity keeps operations smooth. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of 5565-5535 Bearing
In automotive settings, the 5565-5535 Bearing supports heavy loads in drivetrains, while its precision also makes it useful in aerospace landing gear systems. The ABEC-1 rating ensures consistent performance.

Essential Roles of 5565-5535 Bearing
For conveyor systems and agricultural machinery, the 5565-5535 Bearing offers reliable performance under varying loads. Its open design simplifies maintenance, reducing downtime in busy operations.
