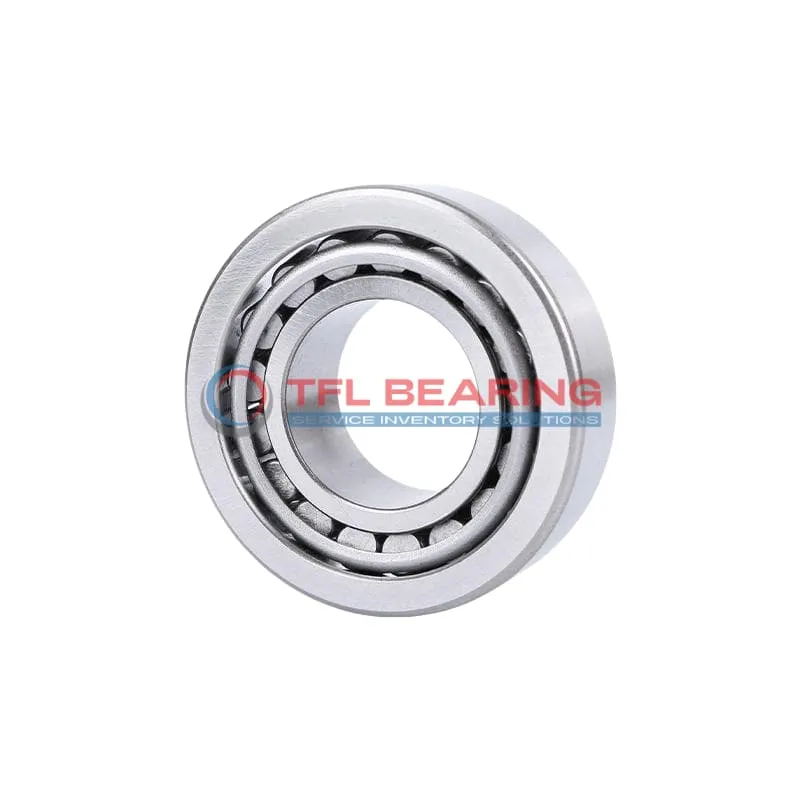

TS (Single Row Tapered Roller Bearings) (Imperial) 540-534

TS (Single Row Tapered Roller Bearings) (Imperial) 540-534

The 540-534 is a single-row tapered roller bearing with a 2.0625″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 38700 lbf radially and 5090 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing 3.3 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 540-534
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0625" x 4.3307" x 1.3437"
  • Bore Dia 2.0625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3437"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.36"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.70"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 540
  • Cup Part Number 534
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.3 lb

Features

Performance Features of 540-534 Bearing

540-534 Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in various applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Is 540-534 Bearing Engineered for Reliability?

540-534 Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its effective center location of -0.48″ optimises load distribution, improving overall performance.
Designed for ABEC-1 precision, it balances cost and efficiency.

Built for Durability: 540-534 Bearing

540-534 Bearing’s chrome steel components provide excellent wear resistance, even under heavy loads.
The open seal design allows for easy lubrication, maintaining optimal performance over time.
With a static radial load capacity of 46,200 lbf, it is suitable for demanding industrial applications.
Its standard construction ensures compatibility with various machinery setups.

Steel vs Ceramic Bearings: Strengths of 540-534 Bearing

540-534 Bearing uses chrome steel for both rollers and rings, offering a cost-effective yet durable solution.
The steel cage ensures stability, while the tapered roller design efficiently manages combined loads.
Its dynamic thrust rating of 5,090 lbf (Ca90) makes it versatile for different applications.
The bearing’s compliance with RoHS and REACH standards ensures environmental safety.

Application

Industrial Uses of 540-534 Bearing
The 540-534 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 540-534 Bearing Used?
You’ll often find 540-534 Bearing in automotive applications, particularly in wheel hubs and differential systems, where its robust design supports both radial and thrust loads. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 540-534 Bearing
540-534 Bearing excels in industrial settings like conveyor systems, where its steel cage and open design allow for easy lubrication and maintenance. The standard radial clearance ensures smooth operation under varying loads.

Automotive vs Aerospace: Applications of 540-534 Bearing
In automotive systems, 540-534 Bearing is ideal for transmissions and axles, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating balances performance and cost for these applications.

Perfect Fit for Automation: 540-534 Bearing
540-534 Bearing works well in automated machinery, such as robotic arms, where its tapered rollers provide stability during repetitive movements. The temperature range of -30° to 110°C ensures reliability in diverse operating conditions.
