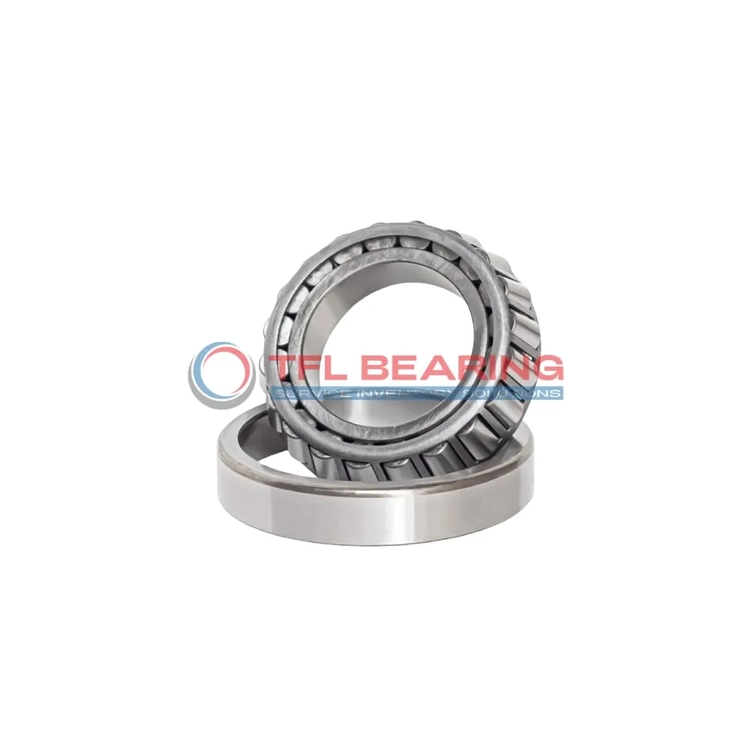

TS (Single Row Tapered Roller Bearings) (Imperial) 536-532X

TS (Single Row Tapered Roller Bearings) (Imperial) 536-532X

The 536-532X is a single-row tapered roller bearing with a 1.875″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 38700 lbf radially and 5090 lbf in thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3.5 lb, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 536-532X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.25" x 1.4375"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.44"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.70"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 536
  • Cup Part Number 532X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.5 lb

Features

Performance Features of 536-532X Bearing

536-532X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in demanding conditions.

The tapered roller design distributes loads evenly, reducing wear and extending service life.
With a static radial load of 46,200 lbf, it handles heavy-duty applications with ease.

536-532X Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance and ABEC-1 rating provide consistent performance for various industrial uses.

Application

Industrial Uses of 536-532X Bearing
536-532X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 536-532X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 536-532X Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength to withstand continuous operation.

Where Is 536-532X Bearing Used?
536-532X Bearing is often found in agricultural machinery, supporting components like gearboxes and PTO shafts. Its robust design handles the rough conditions typical in farming operations.

The bearing also works well in mining equipment, where its ability to manage heavy loads and vibrations is crucial. The standard radial clearance ensures smooth operation even under stress.

Built for Heavy-Duty Use: 536-532X Bearing
536-532X Bearing excels in forestry equipment, such as log splitters and sawmills, thanks to its high dynamic radial load capacity. The tapered rollers distribute loads evenly, reducing wear.

In material handling systems, this bearing’s compatibility with Timken models makes it a versatile choice for replacements. Its temperature range suits both indoor and outdoor applications.

Automotive vs Aerospace: Applications of 536-532X Bearing
536-532X Bearing is a go-to for truck axles, where its combined load handling keeps vehicles running smoothly. The inch measurements align with many commercial vehicle standards.

While not typically used in aerospace, this bearing finds its place in ground support equipment. Its reliability and ease of maintenance make it practical for airport machinery.
