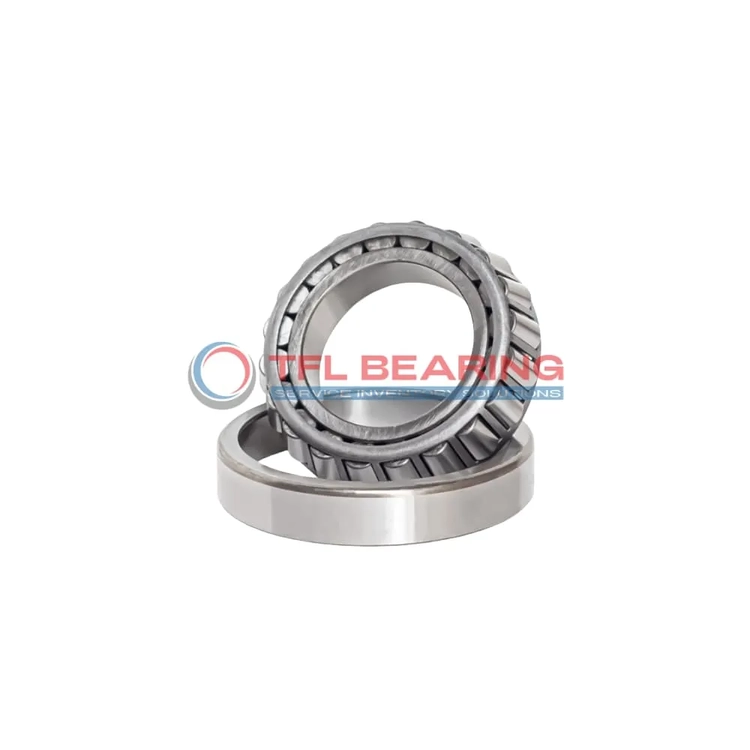

TS (Single Row Tapered Roller Bearings) (Imperial) 5358-5320

TS (Single Row Tapered Roller Bearings) (Imperial) 5358-5320

The 5358-5320 is a single-row tapered roller bearing with a 1.875″ bore and 3.9843″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 47700 lbf radially and 6280 lbf in thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes, axles, or machinery where combined loads are common.

Weighing 3.7 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5358-5320
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 3.9843" x 1.719"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.9843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.751"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.719"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.28"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.82"
  • Cup Backface Backing Diameter 3.46"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.63"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5358
  • Cup Part Number 5320
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 47700 lbf
  • Static Radial Load 60100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 lb

Features

Performance Features of 5358-5320 Bearing

5358-5320 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 47,700 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose 5358-5320 Bearing for Precision Tasks?

5358-5320 Bearing features a single-row tapered roller design, providing precise load distribution.
The chrome steel construction ensures long-lasting performance even under high stress.
Its effective center location of -0.63″ enhances stability in demanding applications.
The standard radial clearance allows for smooth operation in precision machinery.

Engineered for Reliability: 5358-5320 Bearing

5358-5320 Bearing’s tapered roller design handles both radial and thrust loads efficiently.
The chrome steel materials resist wear, ensuring extended service life.
With a static radial load capacity of 60,100 lbf, it excels in heavy-load scenarios.
The open seal type simplifies maintenance, reducing operational downtime.

Steel vs Ceramic Bearings: Strengths of 5358-5320 Bearing

5358-5320 Bearing uses chrome steel for both rings and rollers, balancing cost and performance.
Its dynamic thrust rating of 6,280 lbf ensures reliable operation under combined loads.
The steel cage provides robust support, maintaining roller alignment under stress.
With ABEC-1 rating, it offers consistent precision for industrial applications.

Application

Common Applications of 5358-5320 Bearing
5358-5320 Bearing is widely used in industrial machinery, especially in heavy-duty equipment like gearboxes and conveyor systems. Its tapered roller design handles combined loads efficiently, making it suitable for demanding environments.

In automotive applications, 5358-5320 Bearing supports axle assemblies and wheel hubs, ensuring smooth performance under varying loads. The chrome steel construction enhances durability, even in high-stress conditions.

For construction equipment, 5358-5320 Bearing’s robust design makes it ideal for cranes and excavators. The open seal type allows for easy lubrication, extending its service life in tough working conditions.

Where Is 5358-5320 Bearing Used?
5358-5320 Bearing is commonly found in agricultural machinery, such as tractors and harvesters. Its ability to handle radial and thrust loads makes it versatile for farming applications.

The bearing also plays a key role in mining equipment, where reliability is crucial. Its steel cage and chrome steel rollers provide excellent resistance to wear and tear.

Built for Heavy-Duty Use: 5358-5320 Bearing
5358-5320 Bearing excels in applications like industrial fans and pumps, where consistent performance is needed. Its standard radial clearance ensures smooth operation over long periods.

In material handling systems, 5358-5320 Bearing’s tapered rollers reduce friction, improving efficiency. The inch sizing makes it compatible with a wide range of machinery.

Automotive vs Aerospace: Applications of 5358-5320 Bearing
In automotive systems, 5358-5320 Bearing is often used in differentials and transmissions. Its combined load capacity ensures reliable performance in vehicles.

For aerospace ground equipment, 5358-5320 Bearing supports heavy loads in tow tractors and cargo loaders. The ABEC-1 rating provides sufficient precision for these applications.
