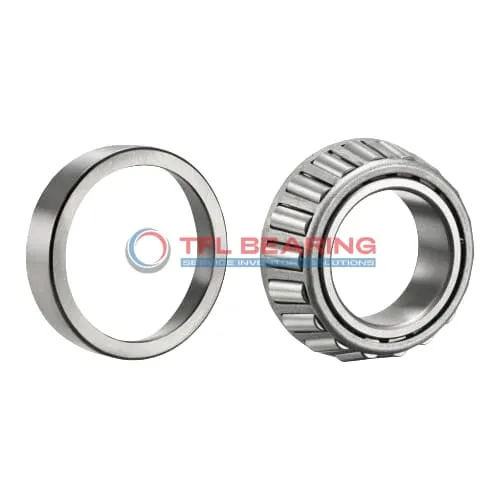

TS (Single Row Tapered Roller Bearings) (Imperial) 5356-5320

TS (Single Row Tapered Roller Bearings) (Imperial) 5356-5320

The 5356-5320 is a single-row tapered roller bearing with a 1.75″ bore and 3.9843″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 47700 lbf radially and 6280 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, gearboxes, or industrial equipment where combined loads are common.

Weighing 3.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The 5356-5320 features a standard radial clearance, with options for C3, C4, or C5 available. Its tapered roller design ensures efficient load distribution, reducing wear over time.

With an ABEC-1 rating, it provides dependable precision for general industrial use. The bearing’s effective center location at -0.63″ helps maintain alignment in complex assemblies.

Its cone and cup parts (5356 and 5320) are designed for easy maintenance and replacement. Suitable for applications requiring consistent performance under radial and thrust loads.

The bearing’s dimensions and tolerances ensure a snug fit, enhancing stability in high-load scenarios. A practical choice for engineers and maintenance teams alike.

This tapered roller bearing is built to last, with chrome steel rollers and rings for extended service life. Its dynamic radial rating of 12400 lbf at 90 million revolutions highlights its endurance.

The open seal type simplifies lubrication, ensuring smooth operation even under heavy use. Its standard cup type and single-row construction make it easy to integrate into existing systems.

Ideal for use in agricultural machinery, construction equipment, or automotive applications. The bearing’s temperature range and compliance with RoHS and REACH add to its versatility.

With a weight of 3.9 lb, it balances strength and ease of handling. A reliable component for professionals seeking durability and performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5356-5320
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 3.9843" x 1.719"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.9843"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.751"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.719"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.82"
  • Cup Backface Backing Diameter 3.46"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.63"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5356
  • Cup Part Number 5320
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 47700 lbf
  • Static Radial Load 60100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6280 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.9 lb

Features

Performance Features of 5356-5320 Bearing

5356-5320 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 47,700 lbf, making it suitable for heavy-duty applications.
The single-row tapered roller design ensures effective load distribution, enhancing durability.
With a standard radial clearance, it provides reliable operation in various industrial settings.

How Is 5356-5320 Bearing Engineered for Reliability?

5356-5320 Bearing features a steel cage that maintains roller alignment, reducing friction and wear.
The tapered roller design handles both radial and thrust loads efficiently, ensuring smooth operation.
Its ABEC-1 rating guarantees consistent precision, even in demanding conditions.
The bearing operates within a temperature range of -30° to 110°C, adapting to diverse environments.

Built for Durability: 5356-5320 Bearing

5356-5320 Bearing’s chrome steel construction resists wear, extending its service life.
The standard radial clearance option allows for flexibility in different applications.
With a static radial load capacity of 60,100 lbf, it delivers reliable performance under heavy loads.
Its open design simplifies lubrication, ensuring smooth operation over time.

Steel vs Ceramic Bearings: Strengths of 5356-5320 Bearing

5356-5320 Bearing’s chrome steel rollers provide excellent strength and durability.
The tapered design efficiently manages combined loads, making it versatile for various uses.
Its dynamic thrust rating of 6,280 lbf ensures reliable performance in thrust applications.
The bearing’s steel cage enhances stability, reducing maintenance needs.

Why Choose 5356-5320 Bearing for Precision Tasks?

5356-5320 Bearing’s ABEC-1 rating ensures precise performance in industrial applications.
The tapered roller design offers effective load distribution, minimising wear.
Its dynamic radial rating of 12,400 lbf at 90 million revolutions highlights its longevity.
The bearing’s chrome steel construction provides corrosion resistance, even in harsh conditions.

Application

Industrial Uses of 5356-5320 Bearing
5356-5320 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 5356-5320 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its imperial sizing makes it a popular choice for North American vehicles.

For industrial conveyor systems, 5356-5320 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability during continuous operation.

Where Is 5356-5320 Bearing Used?
You’ll often find 5356-5320 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The ABEC-1 rating ensures consistent performance.

In mining equipment, 5356-5320 Bearing’s high dynamic radial load capacity makes it suitable for crushers and screens. The standard radial clearance offers flexibility for various setups.

Built for Heavy-Duty Use: 5356-5320 Bearing
5356-5320 Bearing excels in forestry equipment like log splitters, thanks to its tapered rollers distributing loads evenly. The temperature range suits both cold and moderate climates.

For railway applications, 5356-5320 Bearing’s compatibility with Timken designs simplifies maintenance. Its static radial load rating ensures reliability in stationary loads.

Automotive vs Aerospace: Applications of 5356-5320 Bearing
In automotive drivetrains, 5356-5320 Bearing handles high torque, while its aerospace use is limited due to weight. The inch measurements align with US manufacturing standards.

For industrial pumps, 5356-5320 Bearing’s dynamic thrust rating supports axial loads efficiently. The steel cage prevents roller misalignment during rapid rotations.
