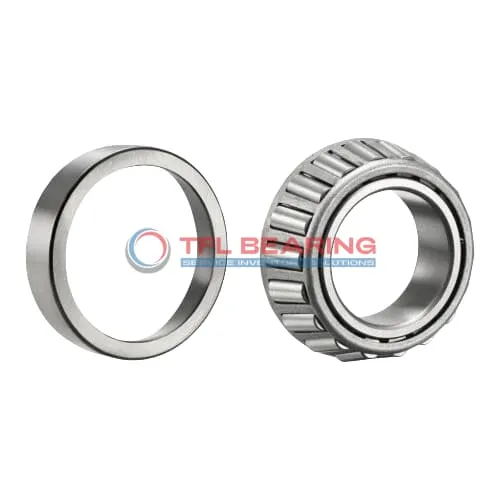

TS (Single Row Tapered Roller Bearings) (Imperial) 535-532A

TS (Single Row Tapered Roller Bearings) (Imperial) 535-532A

The 535-532A is a single-row tapered roller bearing with a 1.75″ bore and 4.375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 38700 lbf radially and 5090 lbf thrust, making it versatile for various applications.

Its open design and steel cage ensure durability, while the tapered rollers provide smooth operation. The bearing requires regular lubrication and works in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive uses where combined loads are common.

Weighing 4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 535-532A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4.375" x 1.5"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.74"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 535
  • Cup Part Number 532A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4 lb

Features

Performance Features of 535-532A Bearing

535-532A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures even load distribution, reducing stress and extending service life.
With a standard radial clearance, it provides reliable performance in various operating conditions.

535-532A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, ensuring smooth operation and reduced wear.

Application

Industrial Uses of 535-532A Bearing
535-532A Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The inch sizing makes it a straightforward fit for North American industrial standards.

In automotive applications, 535-532A Bearing works well in wheel hubs and differential systems, thanks to its robust chrome steel construction. Its open design simplifies lubrication, ensuring long service life even under constant stress.

For conveyor systems, 535-532A Bearing’s ability to manage radial and thrust loads makes it reliable for high-capacity transport. The steel cage adds durability, reducing maintenance needs in demanding environments.

Where Is 535-532A Bearing Used?
You’ll often find 535-532A Bearing in mining equipment, where its tapered rollers handle uneven loads and harsh conditions. The standard radial clearance option balances performance and ease of installation.

In power transmission systems, 535-532A Bearing supports shafts and gears, ensuring smooth rotation under heavy loads. Its compatibility with Timken equivalents makes it a versatile choice for repairs and upgrades.

Built for Heavy-Duty Use: 535-532A Bearing
535-532A Bearing excels in forestry machinery, where its combined load capacity handles the demands of log splitters and saws. The chrome steel rollers resist wear, even in dusty or wet conditions.

For railway applications, 535-532A Bearing’s durability makes it suitable for axle boxes and traction motors. The ABEC-1 rating ensures reliable performance without overcomplicating tolerances.

Automotive vs Aerospace: Applications of 535-532A Bearing
In automotive settings, 535-532A Bearing is ideal for truck transmissions, where its strength and precision keep gears aligned. The inch measurements simplify sourcing for older vehicle models.

For aerospace ground equipment, 535-532A Bearing supports loading platforms and maintenance tools. Its temperature range (-30° to 110°C) covers most operational needs without specialised materials.
