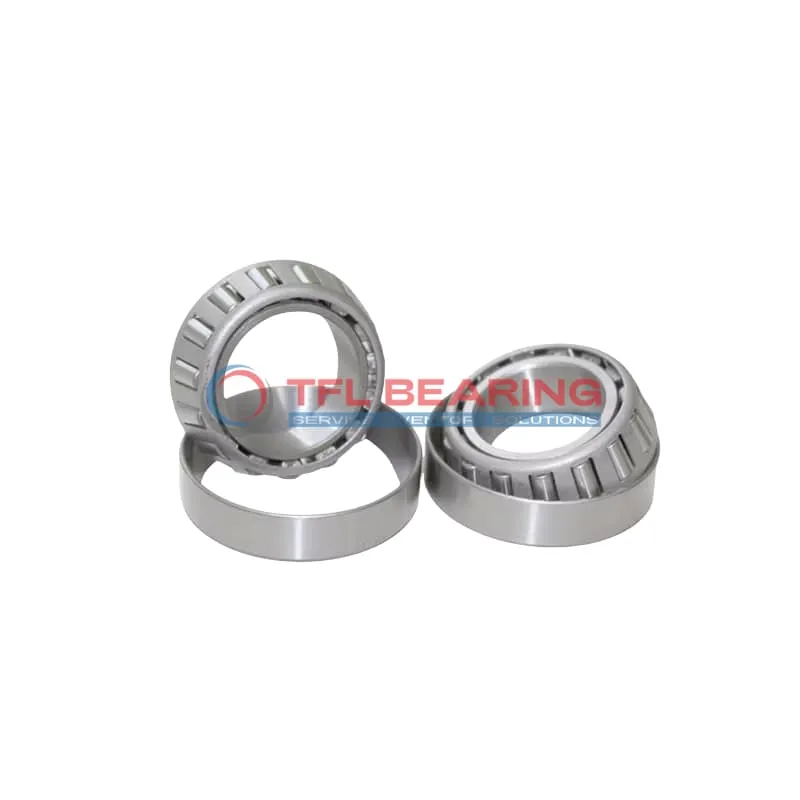

TS (Single Row Tapered Roller Bearings) (Imperial) 52387W-52618P

TS (Single Row Tapered Roller Bearings) (Imperial) 52387W-52618P

The 52387W-52618P is a single-row tapered roller bearing with a 3.875″ bore and 6.1875″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 50200 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing can withstand temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like gearboxes or industrial machinery where combined loads are common.

Weighing 5.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52387W-52618P
  • Brand TFL
  • Interchangeable Timken
  • Size 3.875" x 6.1875" x 1.4375"
  • Bore Dia 3.875"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4219"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0313"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.94"
  • Cone Backface Backing Diameter 4.49"
  • Cup Frontface Backing Diameter 6.00"
  • Cup Backface Backing Diameter 5.59"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.02"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 52387W
  • Cup Part Number 52618P
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 52000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 50200 lbf
  • Static Radial Load 77000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.5 lb

Features

Performance Features of 52387W-52618P Bearing

52387W-52618P Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 50,200 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

52387W-52618P Bearing’s standard radial clearance allows for smooth operation in most industrial settings.
Its ABEC-1 rating ensures consistent precision for general engineering applications.

The open design simplifies lubrication, helping to maintain optimal performance over time.
Weighing just 5.5 lb, it balances durability with manageable installation.

Application

Industrial Uses of 52387W-52618P Bearing
52387W-52618P Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 52387W-52618P Bearing Used?
You’ll often find 52387W-52618P Bearing in automotive applications like truck wheel hubs, where its ability to manage radial and thrust loads keeps things running smoothly. The inch sizing makes it a good fit for many North American vehicles.

Built for Heavy-Duty Use: 52387W-52618P Bearing
52387W-52618P Bearing excels in industrial fans and pumps, thanks to its robust steel cage and high dynamic load capacity. Its open design allows for easy lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of 52387W-52618P Bearing
In automotive settings, 52387W-52618P Bearing supports heavy axles and transmissions, while in aerospace, its precision helps with landing gear mechanisms. The ABEC-1 rating ensures reliable performance across both sectors.

Perfect Fit for Automation: 52387W-52618P Bearing
52387W-52618P Bearing works well in automated conveyor systems, where its tapered rollers reduce friction and improve efficiency. The standard radial clearance option makes it versatile for various speed requirements.
