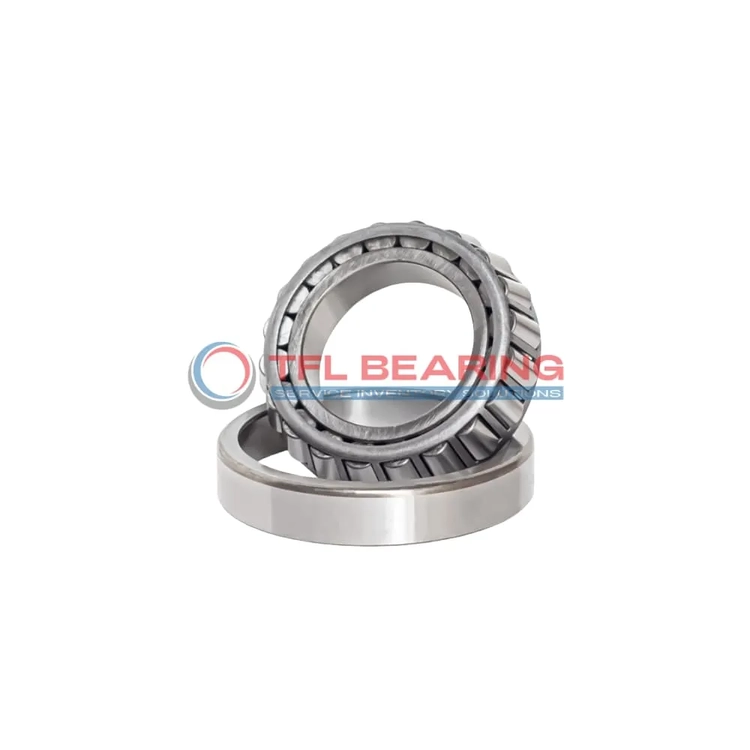

TS (Single Row Tapered Roller Bearings) (Imperial) 467-453

TS (Single Row Tapered Roller Bearings) (Imperial) 467-453

The 467-453 is a single-row tapered roller bearing with a 1.875″ bore and 4.25″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy machinery or automotive uses where combined loads are common.

Weighing 3 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 467-453
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.25" x 1.0943"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0943"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.82"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 467
  • Cup Part Number 453
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3 lb

Features

Performance Features of 467-453 Bearing

467-453 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 467-453 Bearing Reduce Friction?

467-453 Bearing’s tapered roller design minimises friction, ensuring smooth operation under combined loads.
The chrome steel construction enhances durability while maintaining efficient performance.
Its standard radial clearance allows for optimal lubrication, further reducing wear.
This design makes it a reliable choice for industrial applications.

Engineered for Precision: 467-453 Bearing

467-453 Bearing features precise dimensions, with a bore diameter tolerance of +0.005″ to 0.
The effective center location of -0.28″ ensures accurate alignment in machinery.
Its ABEC-1 rating guarantees consistent performance for standard precision needs.
The bearing’s construction balances strength and precision effectively.

Steel vs Ceramic Bearings: Strengths of 467-453 Bearing

467-453 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
This material choice makes it more cost-effective than ceramic options while maintaining reliability.
The steel cage adds structural integrity, ensuring long service life.
It’s a practical solution for applications where ceramic bearings may be unnecessary.

Application

Industrial Uses of 467-453 Bearing
The 467-453 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in tough working conditions.

Where Is 467-453 Bearing Used?
You’ll often find 467-453 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for older or custom vehicle designs.

Built for Heavy-Duty Use: 467-453 Bearing
This bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 467-453 Bearing
In automotive systems, 467-453 Bearing supports axles and transmissions, while in aerospace, it’s used in auxiliary equipment due to its robust load capacity. The inch measurements make it versatile for various applications.

Essential Roles of 467-453 Bearing
For conveyor systems and material handling equipment, 467-453 Bearing provides smooth operation under radial and thrust loads. Its standard radial clearance ensures consistent performance in diverse environments.
