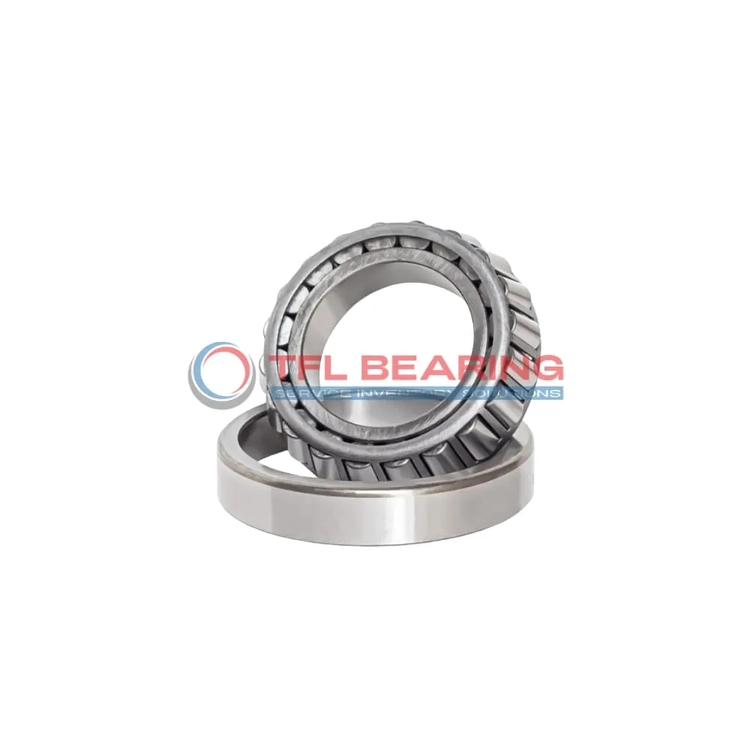

TS (Single Row Tapered Roller Bearings) (Imperial) 467-452

TS (Single Row Tapered Roller Bearings) (Imperial) 467-452

The 467-452 is a single-row tapered roller bearing with a 1.875″ bore and 4.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 3.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 467-452
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.25" x 1.2819"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2819"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.90"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 467
  • Cup Part Number 452
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.1 lb

Features

Performance Features of 467-452 Bearing

467-452 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 467-452 Bearing Engineered for Reliability?

467-452 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The chrome steel construction provides durability, while the steel cage ensures smooth operation.
Its dynamic thrust rating of 5,380 lbf makes it suitable for heavy-duty applications.
With standard radial clearance options, it offers flexibility for different installation needs.

Built for Durability: 467-452 Bearing

467-452 Bearing features a single-row construction, ideal for combined load applications.
The chrome steel components resist wear, maintaining performance over time.
Its ABEC-1 rating ensures consistent precision in various industrial settings.
The open design allows for easy lubrication, enhancing long-term reliability.

Application

Common Applications of 467-452 Bearing
467-452 Bearing is widely used in industrial machinery, especially in heavy-duty equipment like gearboxes and conveyor systems. Its tapered roller design handles combined loads efficiently, making it suitable for demanding environments.

In automotive applications, 467-452 Bearing supports wheel hubs and differential systems, where its durability ensures reliable performance. The inch sizing makes it a good fit for American and British vehicle models.

For construction equipment, 467-452 Bearing’s chrome steel construction provides strength in load-bearing components like cranes and excavators. The open design allows for easy lubrication, extending its service life.

Where Is 467-452 Bearing Used?
467-452 Bearing is commonly found in agricultural machinery, such as tractors and harvesters, where it handles high radial and thrust loads. Its robust design ensures smooth operation in dusty conditions.

In mining equipment, 467-452 Bearing supports crushers and screens, thanks to its ability to withstand heavy impacts. The steel cage adds extra durability, making it a reliable choice for harsh environments.

Built for Heavy-Duty Use: 467-452 Bearing
467-452 Bearing excels in forestry equipment like log splitters and sawmills, where its tapered rollers manage uneven loads. The standard radial clearance ensures consistent performance under varying conditions.

For material handling systems, 467-452 Bearing’s combined load capacity makes it ideal for forklifts and pallet jacks. Its ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Automotive vs Aerospace: Applications of 467-452 Bearing
In automotive systems, 467-452 Bearing is often used in drivetrains and axles, where its load capacity meets everyday demands. The inch measurements simplify replacements in older vehicle models.

For aerospace ground equipment, 467-452 Bearing supports maintenance tools and cargo loaders. Its temperature range (-30° to 110°C) ensures reliability in varying weather conditions.
