TS (Single Row Tapered Roller Bearings) (Imperial) 462W-453E

TS (Single Row Tapered Roller Bearings) (Imperial) 462W-453E

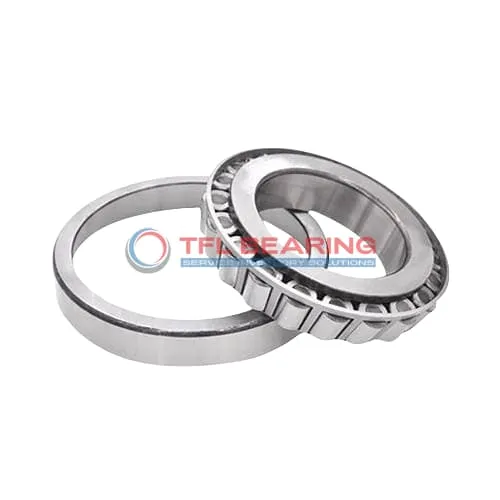

The 462W-453E is a single-row tapered roller bearing with a 2.25″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 30500 lbf radially and 4540 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462W-453E
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.125" x 1.2814"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2814"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462W
  • Cup Part Number 453E
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 30500 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4540 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

Performance Features of 462W-453E Bearing

462W-453E Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 30,500 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

462W-453E Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its tapered roller design efficiently handles both radial and thrust loads.

Application

Industrial Uses of 462W-453E Bearing
462W-453E Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

What Makes 462W-453E Bearing a Preferred Choice?
In automotive applications, 462W-453E Bearing fits well in wheel hubs and differentials, offering reliable performance under radial and thrust loads. Its imperial sizing makes it a go-to for American-made vehicles.

Built for Heavy-Duty Use: 462W-453E Bearing
For industrial conveyors and gearboxes, 462W-453E Bearing’s open design simplifies lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 462W-453E Bearing
While 462W-453E Bearing excels in automotive systems like axles, its precision also suits aerospace components requiring consistent performance. The ABEC-1 rating ensures reliable operation in both fields.
