TS (Single Row Tapered Roller Bearings) (Imperial) 462-453

TS (Single Row Tapered Roller Bearings) (Imperial) 462-453

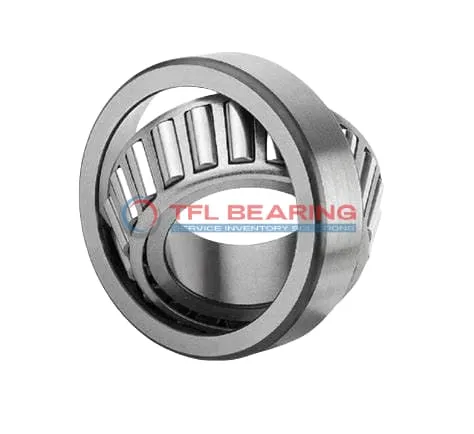

The 462-453 is a single-row tapered roller bearing with a 2.25″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing 2.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462-453
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.25" x 1.0943"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0943"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.82"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462
  • Cup Part Number 453
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.5 lb

Features

Performance Features of 462-453 Bearing

462-453 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Is 462-453 Bearing Engineered for Reliability?

462-453 Bearing features precise cone and cup width tolerances, ensuring smooth operation under stress.
The tapered roller design distributes loads evenly, enhancing durability and reducing wear.
Its standard radial clearance options provide flexibility for different application needs.
This bearing is interchangeable with Timken models, offering convenience for replacements.

Built for Durability: 462-453 Bearing

462-453 Bearing’s chrome steel construction resists wear, making it suitable for demanding environments.
The open seal design allows for easy lubrication, maintaining optimal performance over time.
With a static radial load capacity of 37,200 lbf, it handles heavy loads without compromising reliability.
Its ABEC-1 rating ensures consistent precision in various industrial applications.

Steel vs Ceramic Bearings: Strengths of 462-453 Bearing

462-453 Bearing uses chrome steel for both rollers and rings, balancing strength and cost-effectiveness.
The steel cage provides robust support, ensuring stable operation under combined loads.
Unlike ceramic options, this bearing is more affordable while still offering high load capacities.
Its compatibility with standard lubrication methods simplifies maintenance procedures.

Application

Industrial Uses of 462-453 Bearing
The 462-453 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in rugged environments.

Where Is 462-453 Bearing Used?
You’ll often find 462-453 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it compatible with many North American industrial applications.

Built for Heavy-Duty Use: 462-453 Bearing
462-453 Bearing excels in mining equipment, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 462-453 Bearing
In automotive systems, 462-453 Bearing is ideal for wheel hubs and differentials, thanks to its combined load capacity. For aerospace, its precision meets the demands of auxiliary equipment.

Essential Roles of 462-453 Bearing
462-453 Bearing plays a key role in conveyor systems, ensuring smooth operation under heavy loads. Its standard radial clearance offers flexibility for various industrial setups.
