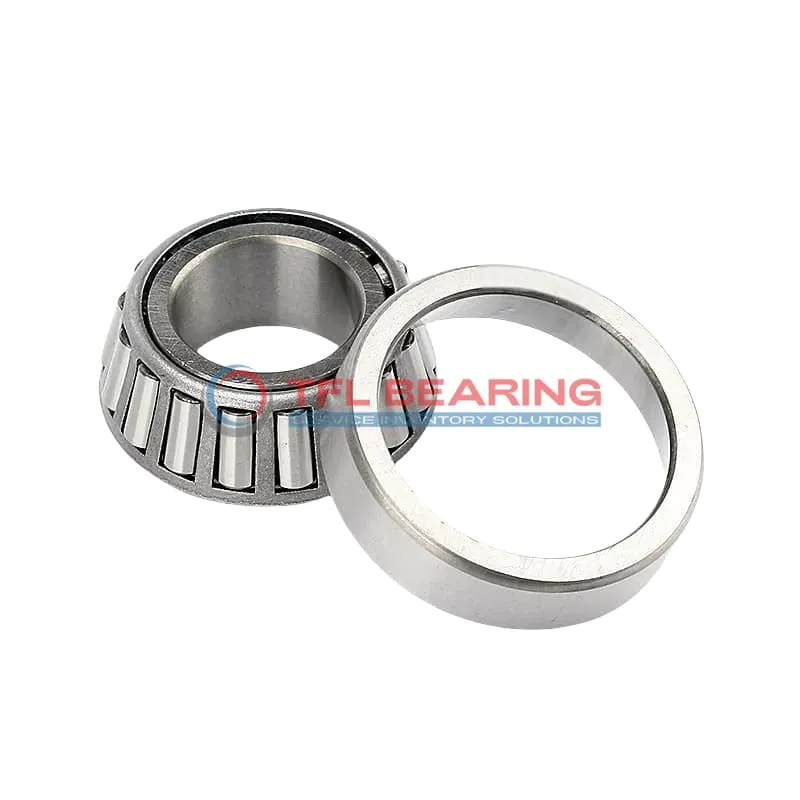

TS (Single Row Tapered Roller Bearings) (Imperial) 42362-42587

TS (Single Row Tapered Roller Bearings) (Imperial) 42362-42587

The 42362-42587 is a single-row tapered roller bearing with a 3.625″ bore and 5.875″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36600 lbf radially and 8000 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery, gearboxes, or automotive applications where combined loads are common.

Weighing 4.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments. The standard radial clearance can also be adjusted to C3, C4, or C5 if needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 42362-42587
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 5.875" x 1.25"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1406"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9688"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.25"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.64"
  • Cup Backface Backing Diameter 5.28"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location 0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 42362
  • Cup Part Number 42587
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 42000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36600 lbf
  • Static Radial Load 54300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.4 lb

Features

Performance Features of 42362-42587 Bearing

42362-42587 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,600 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Does 42362-42587 Bearing Reduce Friction?

42362-42587 Bearing’s tapered roller design minimises friction, promoting smooth operation under combined loads.
The chrome steel construction enhances durability while maintaining efficient performance.
Precision tolerances ensure consistent alignment, reducing wear over time.
Its standard radial clearance options provide flexibility for different application needs.

Designed for Durability: 42362-42587 Bearing

42362-42587 Bearing features a robust single-row construction, ideal for handling high radial and thrust loads.
The chrome steel components resist wear, ensuring long service life even in demanding conditions.
With a static radial load capacity of 54,300 lbf, it delivers reliable performance.
Its ABEC-1 rating confirms consistent quality and precision.

Steel vs Ceramic Bearings: Strengths of 42362-42587 Bearing

42362-42587 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
This material choice makes it more cost-effective than ceramic while maintaining good performance.
The bearing handles combined loads efficiently, with dynamic thrust rating of 8,000 lbf.
Its standard lubrication requirement ensures proper operation throughout its service life.

Application

Industrial Uses of 42362-42587 Bearing
The 42362-42587 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.
In automotive applications, 42362-42587 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a straightforward replacement for Timken equivalents in many vehicles.

What Makes 42362-42587 Bearing a Preferred Choice?
With its open design and steel cage, 42362-42587 Bearing is easy to maintain and suitable for high-load scenarios like conveyor systems. The standard radial clearance offers flexibility for different operational needs.
Its compatibility with ABEC-1 standards makes it a practical option for general industrial use, balancing cost and performance without unnecessary complexity.

Built for Heavy-Duty Use: 42362-42587 Bearing
You’ll often find 42362-42587 Bearing in mining equipment, where its dynamic radial load capacity of 36,600 lbf handles demanding conditions. The tapered rollers distribute stress evenly, extending service life.
For maintenance teams, the bearing’s straightforward lubrication requirements and temperature tolerance (-30° to 110°C) simplify upkeep in challenging environments.

Automotive vs Industrial: Applications of 42362-42587 Bearing
In trucks and buses, 42362-42587 Bearing supports axle assemblies, while in factory settings it’s used in gearboxes and heavy-duty pumps. The inch measurements ensure compatibility with older machinery.
The bearing’s static radial load rating of 54,300 lbf makes it equally reliable for both sudden shocks in vehicles and constant loads in industrial settings.

Key Fields for 42362-42587 Bearing
Railway maintenance equipment frequently uses 42362-42587 Bearing for its ability to handle both radial and thrust loads during track work. The steel cage prevents deformation under vibration.
In marine applications, the bearing’s corrosion-resistant materials perform well in pulley systems and winches, even with exposure to saltwater environments.
