TS (Single Row Tapered Roller Bearings) (Imperial) 42350-42584

TS (Single Row Tapered Roller Bearings) (Imperial) 42350-42584

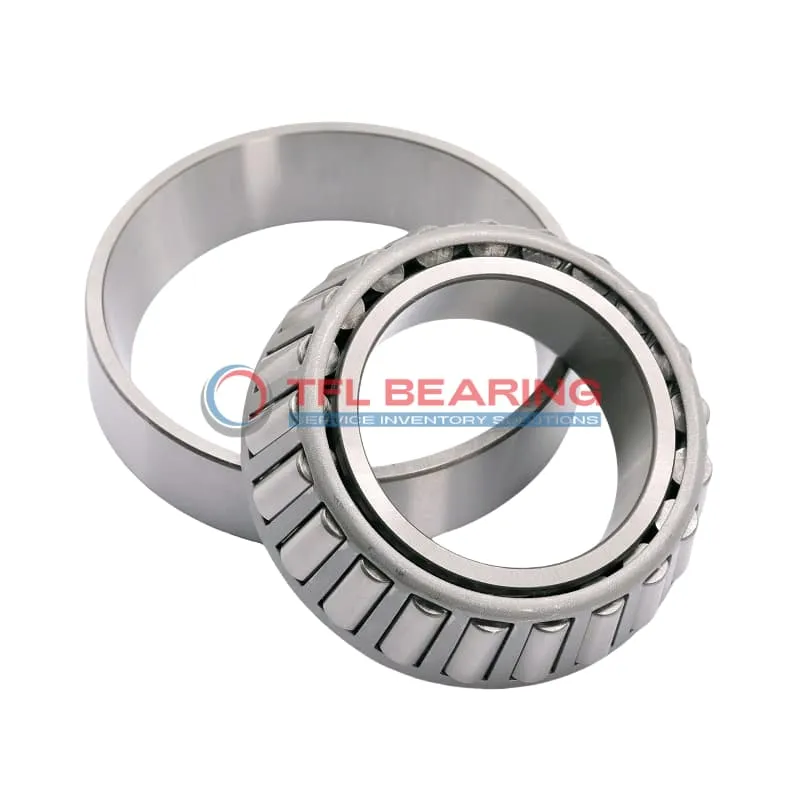

The 42350-42584 is a single row tapered roller bearing with a 3.5″ bore and 5.8437″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 43400 lbf radially and 9480 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 4.3 lb, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 42350-42584
  • Brand TFL
  • Interchangeable Timken
  • Size 3.5" x 5.8437" x 1.125"
  • Bore Dia 3.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.8437"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1406"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8438"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.12"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 4.56"
  • Cone Backface Backing Diameter 4.09"
  • Cup Frontface Backing Diameter 5.63"
  • Cup Backface Backing Diameter 5.28"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location 0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 42350
  • Cup Part Number 42584
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 42000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 43400 lbf
  • Static Radial Load 54300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9480 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.3 lb

Features

How Is 42350-42584 Bearing Engineered for Reliability?

42350-42584 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 43400 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes 42350-42584 Bearing Suitable for High-Temperature Applications?

42350-42584 Bearing is built with chrome steel components, which resist heat and maintain performance up to 110°C.
The tapered roller design efficiently handles combined loads, ensuring stability under stress.
Its standard radial clearance options provide flexibility for different operational needs.
This bearing is ideal for applications requiring consistent performance in varying temperatures.

Designed for Durability: 42350-42584 Bearing

42350-42584 Bearing’s single-row tapered roller construction offers robust support for combined loads.
The chrome steel material enhances wear resistance, prolonging the bearing’s service life.
With a static radial load capacity of 54300 lbf, it excels in demanding industrial settings.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 42350-42584 Bearing
This tapered roller bearing is commonly used in heavy machinery like construction equipment and mining gear, where its robust design handles combined radial and thrust loads effortlessly.
The chrome steel construction ensures durability even in demanding environments, making it a reliable choice for industrial applications.

What Makes 42350-42584 Bearing a Preferred Choice?
In automotive systems, 42350-42584 Bearing fits well in wheel hubs and differentials, providing smooth performance under heavy loads.
Its inch sizing makes it compatible with many North American vehicles, offering versatility across different models.

Built for Heavy-Duty Use: 42350-42584 Bearing
For agricultural machinery, 42350-42584 Bearing excels in tractors and harvesters, where its tapered rollers manage high stress efficiently.
The open design allows for easy lubrication, extending its lifespan in dusty or wet conditions.

Automotive vs Aerospace: Applications of 42350-42584 Bearing
While often found in trucks and buses, 42350-42584 Bearing also suits aerospace ground support equipment due to its high load capacity.
The standard radial clearance ensures consistent performance across varying temperatures and operational conditions.

Key Fields for 42350-42584 Bearing
Railway applications benefit from 42350-42584 Bearing’s ability to handle heavy axial and radial loads in bogies and drivetrains.
Its steel cage and chrome steel rollers provide long-term reliability, reducing maintenance needs.
