TS (Single Row Tapered Roller Bearings) (Imperial) 3992-3925

TS (Single Row Tapered Roller Bearings) (Imperial) 3992-3925

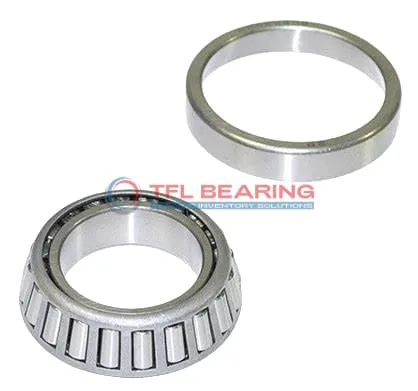

The 3992-3925 is a single-row tapered roller bearing with a 2.625″ bore and 4.4375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 31200 lbf radially and 5570 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.5 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3992-3925
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 4.4375" x 1.1551"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1505"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1551"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.220"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.57"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.18"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3992
  • Cup Part Number 3925
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 31200 lbf
  • Static Radial Load 43000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 8090 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5570 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.5 lb

Features

How Is 3992-3925 Bearing Engineered for Reliability?

3992-3925 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 31,200 lbf, making it suitable for heavy-duty applications.

The tapered roller design provides effective load distribution, reducing stress on individual components.
With a standard radial clearance, it offers flexibility for various operational conditions.

3992-3925 Bearing operates within a temperature range of -30° to 110°C, maintaining performance in diverse environments.
The steel cage keeps rollers aligned, enhancing stability and extending service life.

Application

Industrial Uses of 3992-3925 Bearing
The 3992-3925 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 3992-3925 Bearing Used?
You’ll often find the 3992-3925 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 3992-3925 Bearing
In industrial settings, the 3992-3925 Bearing supports conveyor systems and gearboxes, thanks to its high dynamic radial load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 3992-3925 Bearing
While the 3992-3925 Bearing excels in automotive drivetrains, its precision also suits aerospace landing gear components. The steel cage provides stability under varying temperatures and loads.

Key Fields for 3992-3925 Bearing
The 3992-3925 Bearing is ideal for mining equipment, where its robust design withstands harsh conditions. Its ABEC-1 rating ensures consistent performance without over-engineering.
