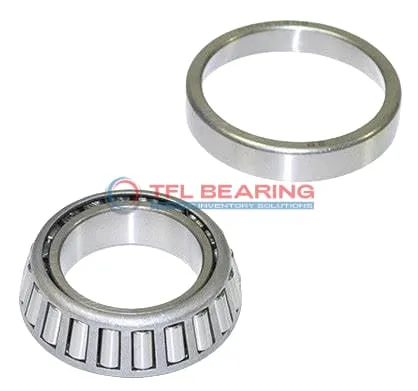

TS (Single Row Tapered Roller Bearings) (Imperial) 395CS-394XS

TS (Single Row Tapered Roller Bearings) (Imperial) 395CS-394XS

The 395CS-394XS is a single-row tapered roller bearing with a 2.625″ bore and 4.3301″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 22200 lbf radially and 3970 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.8 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 395CS-394XS
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 4.3301" x 0.992"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3301"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.923"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.748"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.992"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.02"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.11"
  • Cup Frontface Backing Diameter 4.11"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 395CS
  • Cup Part Number 394XS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 28100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3970 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.8 lb

Features

Performance Features of 395CS-394XS Bearing

395CS-394XS Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 395CS-394XS Bearing Engineered for Reliability?

395CS-394XS Bearing features precise cone and cup dimensions, ensuring accurate fit and smooth operation.
The tapered roller design distributes loads evenly, improving efficiency and reducing friction.
Its standard radial clearance allows for flexibility in different applications.
The bearing requires lubrication, but its robust construction minimises maintenance needs.

Built for Durability: 395CS-394XS Bearing

395CS-394XS Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
The single-row design simplifies installation while maintaining high load capacity.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Its static radial load of 28,100 lbf ensures long-term reliability in demanding environments.

Application

Industrial Uses of 395CS-394XS Bearing
The 395CS-394XS Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 395CS-394XS Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 395CS-394XS Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds stability during continuous operation.

Where Is 395CS-394XS Bearing Used?
You’ll often find 395CS-394XS Bearing in mining equipment, where its robust design handles heavy radial and thrust loads. The standard radial clearance ensures smooth operation even under stress.

In manufacturing plants, 395CS-394XS Bearing supports machinery like presses and rollers, thanks to its ABEC-1 precision. The chrome steel rollers reduce friction, enhancing efficiency.

Built for Heavy-Duty Use: 395CS-394XS Bearing
The 395CS-394XS Bearing excels in forestry machinery, where its tapered rollers manage uneven loads effortlessly. Its temperature range (-30° to 110°C) suits outdoor and high-heat environments.

For railway applications, 395CS-394XS Bearing’s dynamic radial load capacity (22,200 lbf) ensures reliability in freight and passenger cars. The steel cage prevents roller misalignment during long hauls.

Automotive vs Aerospace: Applications of 395CS-394XS Bearing
In automotive drivetrains, 395CS-394XS Bearing handles high torque and axial loads, making it ideal for trucks and off-road vehicles. The inch sizing simplifies replacements in older models.

For aerospace ground equipment, 395CS-394XS Bearing’s static radial load capacity (28,100 lbf) supports heavy-duty trolleys and loading systems. Its standard lubrication requirement ensures consistent performance.
