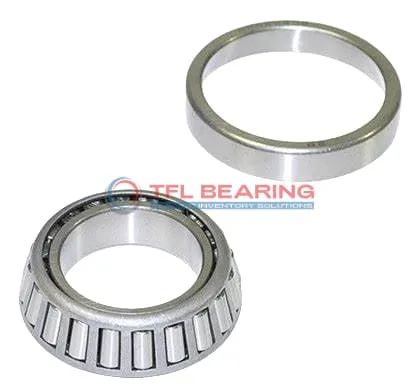

TS (Single Row Tapered Roller Bearings) (Imperial) 395CS-393WE

TS (Single Row Tapered Roller Bearings) (Imperial) 395CS-393WE

The 395CS-393WE is a single-row tapered roller bearing with a 2.625″ bore and 4.59″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22200 lbf radially and 3970 lbf in thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Weighing 2.8 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards, ensuring safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 395CS-393WE
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 4.59" x 1.3679"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.59"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.923"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1859"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3679"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.11"
  • Cup Frontface Backing Diameter 4.18"
  • Cup Backface Backing Diameter 4.09"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 395CS
  • Cup Part Number 393WE
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 28100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3970 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.8 lb

Features

Performance Features of 395CS-393WE Bearing

395CS-393WE Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 395CS-393WE Bearing Engineered for Reliability?

395CS-393WE Bearing features precise cone and cup dimensions, ensuring smooth operation under heavy loads.
The tapered roller design distributes stress evenly, enhancing durability and reducing wear.
Its standard radial clearance allows for flexibility in different applications.
The bearing requires lubrication to maintain optimal performance over time.

Designed for Durability: 395CS-393WE Bearing

395CS-393WE Bearing’s single-row construction provides stability and strength in combined load scenarios.
The chrome steel materials resist wear, making it suitable for long-term use.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Its open seal type allows for easy inspection and maintenance.

Steel vs Ceramic Bearings: Strengths of 395CS-393WE Bearing

395CS-393WE Bearing uses chrome steel for both rollers and rings, ensuring high load capacity.
The steel cage offers robustness, while the tapered design improves load distribution.
It handles dynamic thrust loads up to 3,970 lbf, making it versatile for various applications.
The bearing’s standard radial clearance ensures compatibility with different machinery setups.

Application

Industrial Uses of 395CS-393WE Bearing
395CS-393WE Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 395CS-393WE Bearing supports wheel hubs and drivetrains, providing reliable performance under radial and thrust loads. Its imperial sizing makes it a good fit for North American vehicle models.

For industrial conveyors, 395CS-393WE Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds stability during continuous operation.

Where Is 395CS-393WE Bearing Used?
You’ll often find 395CS-393WE Bearing in agricultural machinery, where its robust design handles rough terrain and variable loads. The standard radial clearance ensures smooth operation even under stress.

In mining equipment, 395CS-393WE Bearing’s high dynamic load capacity makes it suitable for crushers and screens. The ABEC-1 rating balances precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: 395CS-393WE Bearing
395CS-393WE Bearing excels in forestry equipment, where its tapered rollers manage uneven loads from log handling. The chrome steel rollers resist wear in abrasive conditions.

For railway applications, 395CS-393WE Bearing’s temperature tolerance ensures reliability in varying climates. The steel cage prevents deformation under constant vibration.

Automotive vs Aerospace: Applications of 395CS-393WE Bearing
In automotive systems, 395CS-393WE Bearing is ideal for axles, handling both radial and thrust forces during turns. Its inch measurements simplify maintenance for mechanics.

For aerospace ground support equipment, 395CS-393WE Bearing’s standard clearance accommodates thermal expansion. The open design allows for quick inspections between flights.
