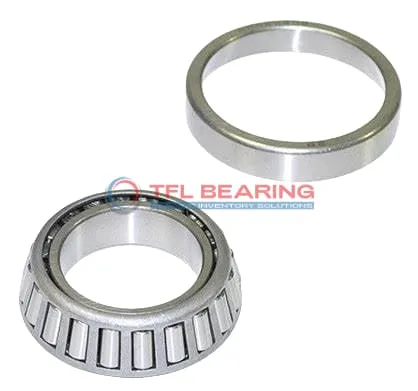

TS (Single Row Tapered Roller Bearings) (Imperial) 395CS-393

TS (Single Row Tapered Roller Bearings) (Imperial) 395CS-393

The 395CS-393 is a single-row tapered roller bearing with a 2.625″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22200 lbf radially and 3970 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 2lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 395CS-393
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 4.3307" x 1.12"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.923"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.12"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.11"
  • Cup Frontface Backing Diameter 4.21"
  • Cup Backface Backing Diameter 3.94"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.09"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 395CS
  • Cup Part Number 393
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 28100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3970 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2 lb

Features

Performance Features of 395CS-393 Bearing

395CS-393 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Does 395CS-393 Bearing Reduce Friction?

395CS-393 Bearing’s tapered roller design minimises friction, allowing smooth operation under heavy loads.
The chrome steel construction ensures durability while maintaining efficient performance.
Its standard radial clearance provides flexibility for different applications.
The steel cage helps keep rollers in place, further reducing wear and tear.

Engineered for Precision: 395CS-393 Bearing

395CS-393 Bearing offers precise performance with its single-row tapered roller design.
The chrome steel components provide excellent strength and resistance to wear.
With a dynamic thrust rating of 3,970 lbf, it handles both radial and axial loads effectively.
Its ABEC-1 rating ensures consistent quality and reliability.

Steel vs Ceramic Bearings: Strengths of 395CS-393 Bearing

395CS-393 Bearing uses chrome steel for both rings and rollers, balancing cost and performance.
This material choice provides good resistance to wear and fatigue under heavy loads.
The bearing’s design allows for effective lubrication, reducing maintenance needs.
Its standard radial clearance makes it versatile for various industrial applications.

Application

Industrial Uses of 395CS-393 Bearing
395CS-393 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 395CS-393 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it a suitable choice for American and British vehicle models.

For industrial conveyor systems, 395CS-393 Bearing’s open design allows for easy lubrication, extending its service life in high-use scenarios. The steel cage adds extra strength, making it a dependable option for continuous operation.

What Makes 395CS-393 Bearing a Preferred Choice?
395CS-393 Bearing stands out in applications like mining equipment, where its robust design copes with extreme loads and harsh conditions. The standard radial clearance offers flexibility for various operational needs.

In power transmission systems, 395CS-393 Bearing’s tapered rollers ensure smooth rotation, reducing friction and wear. Its compatibility with Timken models makes it a versatile replacement option for maintenance teams.

Built for Heavy-Duty Use: 395CS-393 Bearing
395CS-393 Bearing excels in forestry machinery, where its combined load capacity handles the stresses of logging operations. The ABEC-1 rating ensures consistent performance without unnecessary precision costs.

For railway applications, 395CS-393 Bearing’s temperature range (-30° to 110°C) makes it reliable in varying climates. Its steel cage and chrome steel rollers provide long-lasting service under constant vibration.

Automotive vs Aerospace: Applications of 395CS-393 Bearing
In automotive settings, 395CS-393 Bearing is ideal for drivetrain components, offering a balance of strength and ease of maintenance. The inch measurements align with standard repair kits.

For aerospace ground equipment, 395CS-393 Bearing’s dynamic load ratings suit heavy-duty trolleys and loading systems. Its compliance with RoHS and REACH standards ensures environmental safety in sensitive areas.
