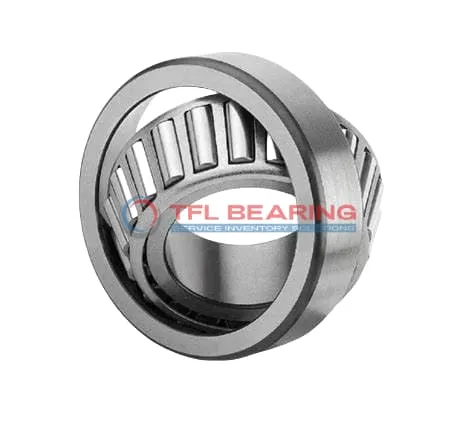

TS (Single Row Tapered Roller Bearings) (Imperial) 390-394A

TS (Single Row Tapered Roller Bearings) (Imperial) 390-394A

The 390-394A is a single-row tapered roller bearing with a 2.25″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22200 lbf radially and 3970 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 390-394A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.3307" x 0.8661"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.866"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7411"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8661"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.6"
  • Cone Backface Backing Diameter 2.76"
  • Cup Frontface Backing Diameter 4.15"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.03"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 390
  • Cup Part Number 394A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 395
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 28100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5760 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3970 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.1 lb

Features

Performance Features of 390-394A Bearing

390-394A Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environmental conditions.

390-394A Bearing requires lubrication, but its robust design minimises maintenance needs.
The standard radial clearance option provides flexibility for different installation requirements.

Application

Industrial Uses of 390-394A Bearing
390-394A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

What Makes 390-394A Bearing a Preferred Choice?
In automotive applications, 390-394A Bearing fits well in wheel hubs and differentials, providing reliable performance under radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 390-394A Bearing
For industrial conveyor systems, 390-394A Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 390-394A Bearing
While 390-394A Bearing excels in automotive wheel assemblies, it’s also found in aerospace landing gear components. Its ABEC-1 rating ensures consistent performance across different industries.

Where Is 390-394A Bearing Used?
In mining equipment, 390-394A Bearing’s robust design handles extreme conditions, from heavy loads to variable temperatures. The standard radial clearance offers flexibility for various operational needs.
