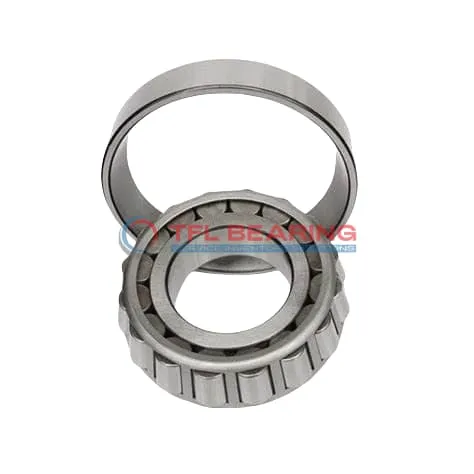

TS (Single Row Tapered Roller Bearings) (Imperial) 389-383

TS (Single Row Tapered Roller Bearings) (Imperial) 389-383

The 389-383 is a single-row tapered roller bearing with a 2.188″ bore and 3.937″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24200 lbf radially and 3810 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.6 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 389-383
  • Brand TFL
  • Interchangeable Timken
  • Size 2.188" x 3.937" x 0.8268"
  • Bore Dia 2.188"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.937"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.864"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8268"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8268"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.4"
  • Cone Backface Backing Diameter 2.56"
  • Cup Frontface Backing Diameter 3.70"
  • Cup Backface Backing Diameter 3.50"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 389
  • Cup Part Number 383
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 385
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24200 lbf
  • Static Radial Load 24100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6280 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3810 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.6 lb

Features

Performance Features of 389-383 Bearing

389-383 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,200 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 389-383 Bearing Engineered for Reliability?

389-383 Bearing features precise cone and cup dimensions, ensuring smooth operation under heavy loads.
The tapered roller design distributes stress evenly, enhancing durability and reducing wear.
Its standard radial clearance allows for flexibility in different applications.
The bearing requires lubrication but offers consistent performance within its temperature range.

Built for Durability: 389-383 Bearing

389-383 Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
Its dynamic thrust rating of 3,810 lbf ensures reliable handling of axial loads.
The open design simplifies maintenance, though lubrication is necessary for optimal performance.
With an ABEC-1 rating, it balances precision and cost-effectiveness.

Application

Industrial Uses of 389-383 Bearing
The 389-383 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in rugged environments.

Where Is 389-383 Bearing Used?
You’ll often find 389-383 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom vehicle models.

Built for Heavy-Duty Use: 389-383 Bearing
In industrial conveyor systems, 389-383 Bearing provides stable performance under constant radial and thrust loads. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 389-383 Bearing
While 389-383 Bearing excels in automotive drivetrains, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 389-383 Bearing
For robotic arms and automated assembly lines, 389-383 Bearing offers smooth rotation and load handling. Its steel cage adds extra strength for high-cycle operations.
